TrimUI Brick Teensy Case (Shoulder Button Delete) STL

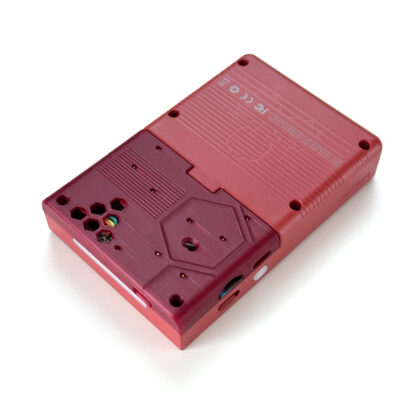

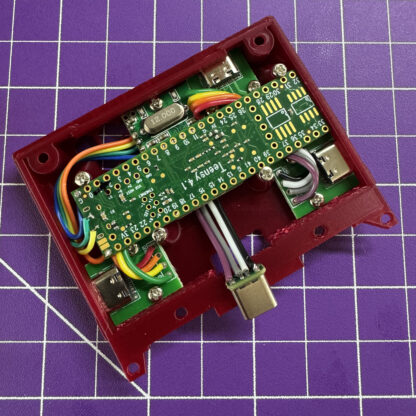

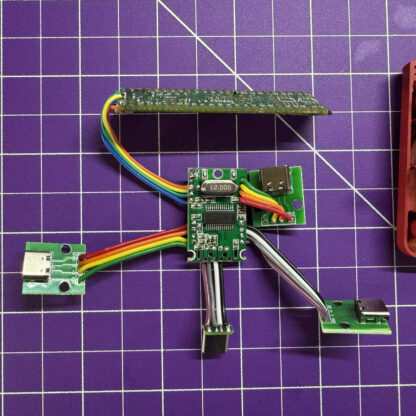

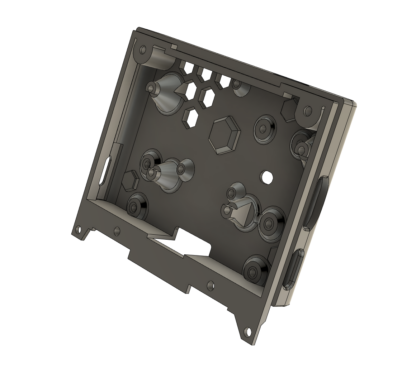

The TrimUI Brick has become a formidable placeholder the Dirtywave M8 tracker, serving as an ideal headless host for the requisite Teensy 4.1. It’s a near perfect balance between controls, size, custom firmware options and audio output. The TrimUI Brick can be enhanced by this svelte backpack style replacement to house a Teensy 4.1 microcontroller, a USB 2.0 Hub PCB and a trio of USB C expansion boards. This is a full replacement for the aluminum backplate and WILL require you to solder your Teensy 4.1 with leads directly on the board to a USB C male plug to plug into the OTG port, or to the USB hub chip.

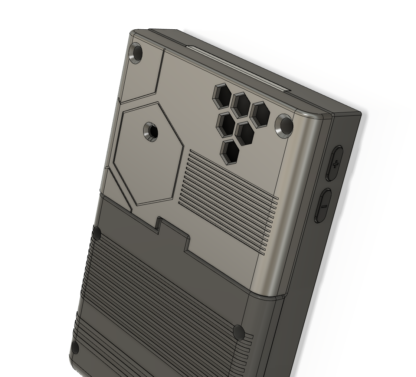

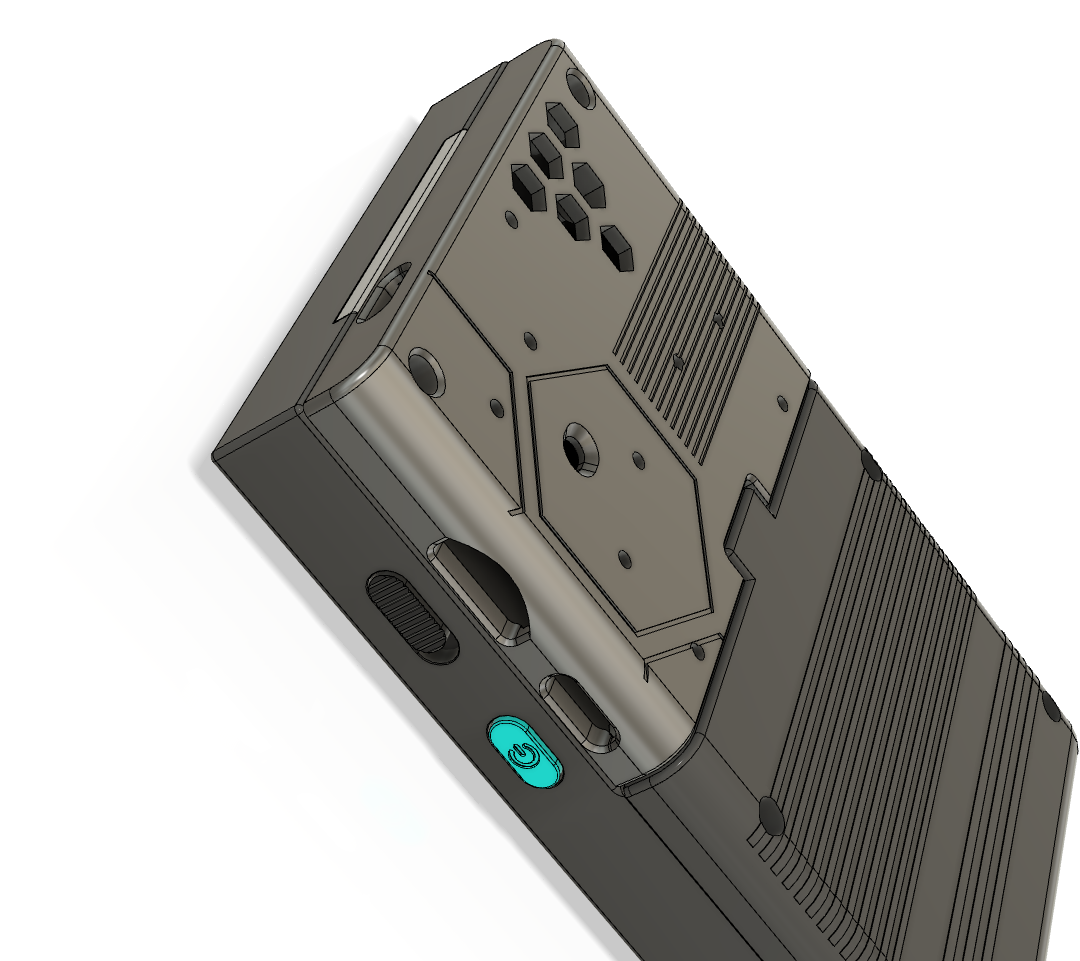

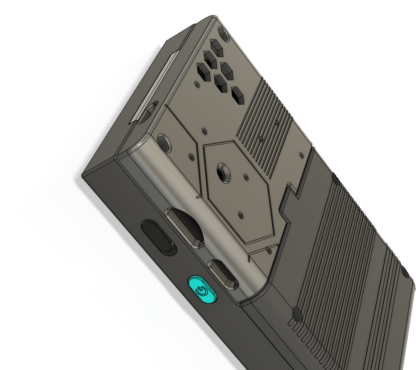

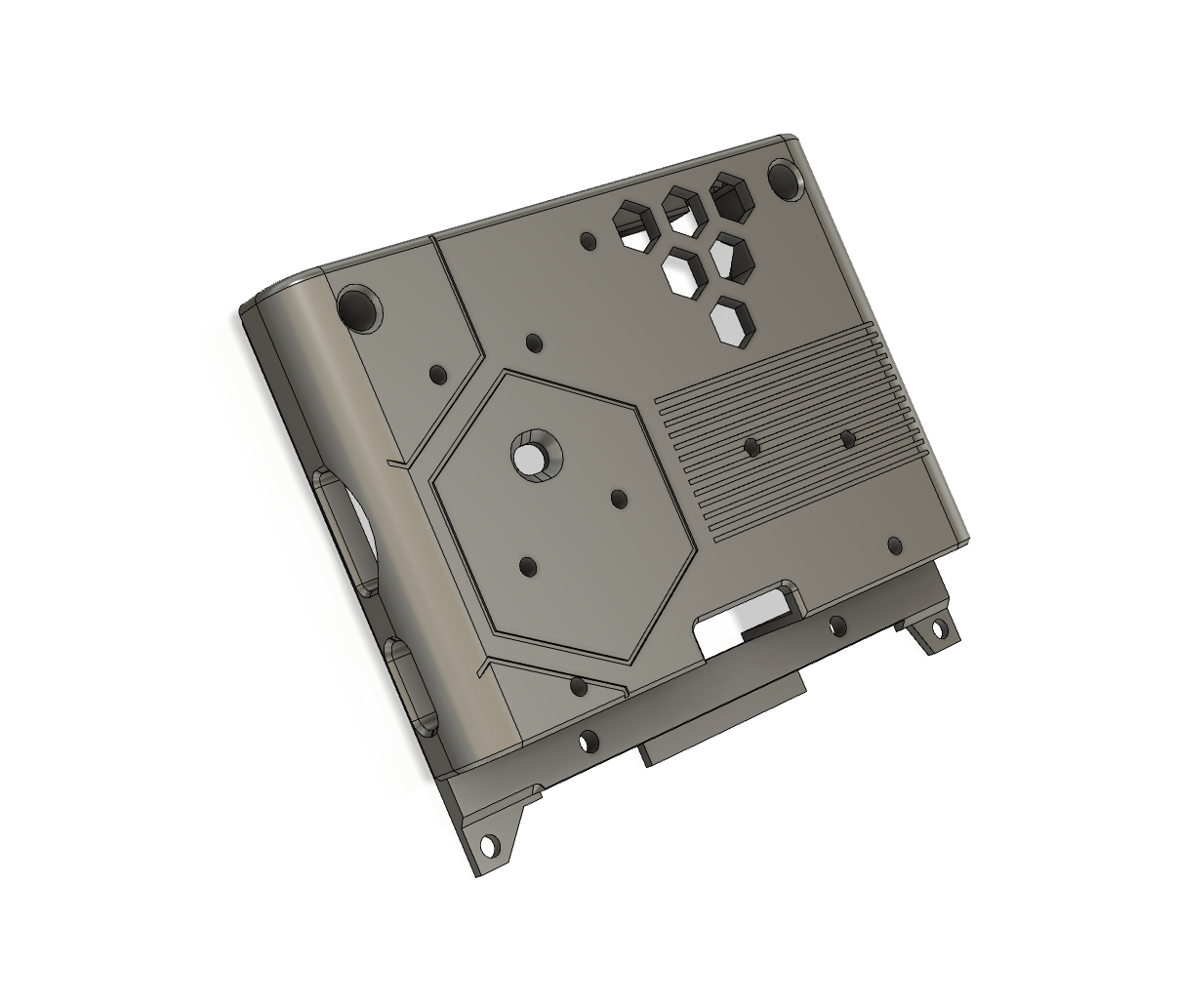

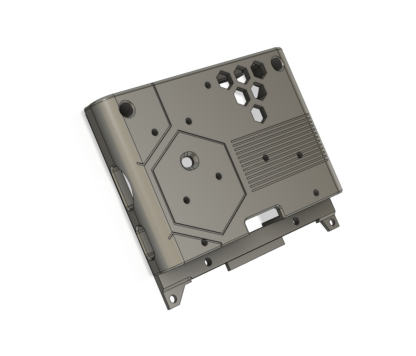

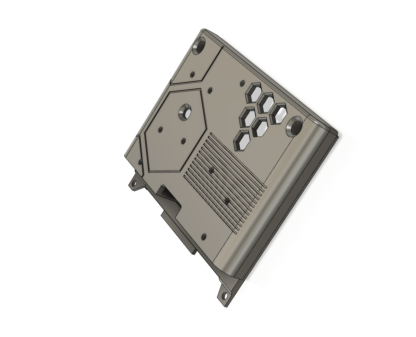

Included are two files, one with the USB C expansion port holes and one with no holes for the Teensy alone.

You will need to source your own hub chips, expansion ports, screws (M2 x 4 pan head SCREWS, not bolts)

THIS LISTING IS FOR THE DIGITAL STL FILE. Access to a 3d printer is required.
