Metro Made | The Steamplinker Slingshot

It’s been quite some time since I’ve written about another build, frankly, it is tough to live up to last slingshot (The Cafe Racer). In this Metro Made, I dive into a deep custom for my last build of 2016. I’ve been collecting materials for this build for quite some time, from all over the planet. Mainly, brass sheet and brass hardware and brass coated components. When the last component arrived, it was time to start building.

To start, this slingshot is dedicated to OTT shooting, with flats and tubes. To achieve this, the design of the Oren’s tips (which this design was based on) had to be altered. Probably the most unique and often debated feature of Simpleshot’s Ocularis ® plug system is the rounded tips. While it offers an incredible versatility and ease of banding for various styles of band orientation, my preference for the Ocularis ® is usually always OTT. Since this build is going to be my 2016 opus and this frame being exclusively mine, I decided to refine the tip into something I would enjoy shooting over, and over and over again.

This illustration you can see the variations I went through to arrive at the final shape. The final tip shape is slightly convex with flat sides and a dip in the middle for the single tube to seat into. The bottom left is what I went with, but without the indentations (a meek attempt at adding wrap and tuck style grooves). The body and handle style remained unchanged, a shape I was very familiar and comfortable with.

screen-shot-2016-12-02-at-11-15-21-am-dec-2

Here’s a sample of what I had to work with for details. Some very small 12mm brass cogs, gears and otherwise Steampunk-like accoutrements.

img_0514

After programing the initial profile, the concept was to use the profile as a template to successively cut and trim each layer of brass, g10, brass, g10 etc etc. This worked out with a few hiccups, but for a complex build like this it can be expected.

The profile also was host to gears, layered at different depths to really mesh into the body. The outmost gears had a 5mm hole which I used to integrate the brass Philps screws.

img_0538

Rough cutting the rest of the materials. At the core is a 3mm thick brass sheet, flanking that is a .03″ black g10, then a .5mm brass sheet, then purple .03″ G10 and finally an outside scale of .125″ black G10. Did I confuse you with the Imperial/Metric measurements? Try working with them…the reason is that they are sourced from all over the world, so the Metric 3mm and .5mm brass was sourced overseas, while the G10 was source from two different North American suppliers. Regardless of system, the final thickness is just a hair over the ideal thickness for the Ocularis ®plugs. I wanted to create a piece that had colour in it but in a subdued colour palette suitable for the steampunk theme. While purple on its own is quite flashy; however used as an accent colour to black and brass/gold tones, it gives an air of royalty and class.

img_0539

Each layer was attached with glue and then trimmed closer to the final shape. Then the brass core and before the last layer was applied, brass M3 inserts were set into the body to so that the screws could be put in place when it was time for final assembly. Unlike most of my excited builds, I took my time with this, letting it sit overnight before trimming the excess material. The Cu-Ren sits next to the Steamplinker as a jumping off point.

img_0550

The unfinished main body travelled around with me while I did some admin work and shipped out some orders. The more I looked at it, the more things I resolved in my head on how to finish it. Next to it is the Kylo-Ren, yet another Oren variant.

img_0551

After sitting on the frame for a day (which was mostly to build up the courage) it was time to tackle the brass core with a flush trim bit via the router. My router jig to hold slingshots was crucial for this step as I wanted nothing to do with holding work with my hands near this potentially dangerous step. Luckily with some tweaking of the router bit and feed speed (and some light lubricant on the brass), the majority of the brass and other stacked layers were trimmed away revealing the very attractive core.

img_0554

The heat of the machining separated some of the layers, no matter, a quick flood with some viscous CA glue and some pressure cured that problem. This also gave a quick preview of what the final core would look like.

img_0553

With so many layers combining to make the main body, I had planned on peening over some brass rod at the tips, which is what I did. This locked the layers down for good. The added thickness of the OTT tips allowed for two pins per tip.

img_0555

This next step I couldn’t document very well since it required a lot of hands on manipulation, but the front scale was cut from .185 G10 with the same .03″ purple G10 liner. On this surface a pocket for the maker’s mark was machined and two channels for inlays to be put in. Strips of brass, black and purple G10 were set into place and then sanded flush with the surface to create a faux separation between the handle and the tip area. The channels aren’t straight, they have a slight curve to them, a feature impossible to do by hand but only with the aid of CNC. A quick router trip with .125 bit cleaned up the side and the surface roughed to 100 grit in prep for more shaping and the fine hand work. Having made this shape dozens of times, the compound curves of the shooter side scale is complex but familiar.

img_0556

Now to flip it over and pay attention to the target side, this is where it got a little crazy. I had to estimate where the lanyard hole would eventually be and select the correct materials to suit the theme. Not only did the materials need to match, but I also like designing these types of features to wear nicely when the slingshot is put on a table or surface or replaced many times into a holster/bag.

So, first was a layer of .5mm brass, then a nice selection of brown ebony (with the grain oriented vertically). Once that cured, the end was ground off with some aggressive 80 grit belt sanding. On that off-axis surface, more brass, purple heart and finally a chunk of canvas micarta. I felt the brown ebony was precious enough to stay within the theme, the purple heart being a natural version of purple tones and the canvas being a little bit of a ‘rougher’ visual texture, it would combine into an interesting composition with the delineated, intersection of brass lines. This is something I’ve been experimenting with for a little while and this was a perfect opportunity to apply it.

img_0557

Rough trimming the excess material away. The ebony is HARD stuff! The ebony section is pinned in place with a brass rod. The offset purpleheart/micarta is held in place with a .25″ brass tube (itself offset to the rotation so it won’t be going anywhere)

img_0559

Again, one of those times when taking process photos would have ruined the flow of creation, but fast-forward to the part where the pinky swell is rough shaped, then tweaked with file work and sanded to 400 grit. Ebony being so hard and oily, it took to wetsanding very well.

img_0560

Some of my favourite parts about this design is how the pinky swell melds into the middle finger indentation near the center of the handle. This makes for a seamless shape, but the material makes is even more interesting.

img_0561

Fast-foward view on the front scale. The process is very much the same, rough shape after drawing on the lines and then lots of file work, abrasive papers and some cloth backed 400 grit. The design of the front scale has been refined over the various iterations of the Oren, but essentially it’s a removal of all the material that would hit a hot spot in the palm. By placing the liner under the thinner scale material, a nice contour of colour is revealed when filing it back.

img_0562

Test fitting the gears before the final sanding and polish.

img_0563

I had tried using the MicroMesh polishing system before on a few other G10 frames and the results were amazing, so there was no reason to skimp on the finish for this. After going through the grits (1500 to 12,000), the surface of the g10 and wood would be as smooth as it would ever get without polishing. The trick to G10, I found, was to leave it unpolished and use some mineral oil to return the jet back colour to the surface since sanding clouds the finish. I may still buff this to a high high shine but the high gloss pinky swell, the matte finish of the g10 and the gleam of the shiny brass makes for a combination of textures that I highly enjoy.

img_0564

I am still waiting for ONE more hardware piece to come in, which put this deep custom slingshot into the next level. Some 10mm ear tunnel gauges. While I sourced 7/16″ G2000 brass balls for the Ocularis plugs, the gear laden era plugs will give the shooter side some interest beyond the maker’s mark.

d2f58e09-6b7e-469f-a1c1-7638ea5e896f

Despite the ‘proper’ hardware missing, I couldn’t help but take some archival photos of the finished slingshot.

mar_3258

mar_3259

mar_3266-1



mar_3269

mar_3241

mar_3242

mar_3251

mar_3252

mar_3237

mar_3271

If you’ve made it to here, it means you are truly dedicated to slingshots! Thank you for reading!

• Stay True •

-Metro/Eric

Posted on 1 Comment

Metro Made | The Spanish Cafe Racer Slingshot

The best thing about slingshots is that it is like a very large pie, each slice a different flavour. One particular slingshot flavour is the legendary Spanish target style shooter. The Spanish Target Style has more in common with Olympic style free pistol and recurve bow target shooting than slingshots. With ergonomically shaped handles, adjustable band position and sights, the Spanish Target Style slingshot is a very tailored fit to the shooter.

It has been a very long time since I’ve posted a build log, just too many projects and too many details to write about. This late but better than never, post is one I am very proud of. Here’s the story of how the Spanish Cafe Racer was created.

Cafe Racer, after the classic naked sport bikes that favour speed over comfort for short races between watering holes.

The idea came to me after I had finished another Spanish style slingshot, named the Jawa. It differs from other Spanish style slings because it has a moveable sight and fixed band positions. Typically, the bands are moved to match up with a fixed sight. The grip is a hybrid pinch/pistol grip which is based off a semi semicircular hand web shaped and a long pistol style handle.

IZA_0636

IZA_0638 copy

I had received a connector rod and piston combination (from a Triumph TT 600 for you motorheads) I was more excited about the piston than the con-rod (which can be converted into slingshot as well). The circumference and and over all shape was going to be perfect for the project I had in mind. Here’s a photo of the final product so you have an idea of where we are going.

IZA_0732

Here’s a shot of what kind of raw material I was working with: a solid cast aluminum piston head. The recesses for the con-rod movement were a great jumping off point on the design of the handle.

IMG_7247

After some very careful planning and digital alteration of the piston head (lopping off a section of the front of it). This is what I came up with for the front fork plate, handle and base plate. The fork plate design is a meld of aesthetic and functional choices; the fork tips, the index finger hole, attachment holes and maker’s mark position ALL in one part. The handle is a 3 part sandwich where the middle section is sunk into the base of the piston and held in with the con-rod pin.

IMG_7256

A quick and dirty digital mock up of the fork plate. It is out of scale, but the general idea was there. After 2 days of planning, I was ready to go into the shop and start crafting this speed machine.

IMG_7267

–Shop Time–

First step was to mill off some of the piston head to reveal a face to attach the fork plate to.

IMG_7284

Then it was time to cut the for plate, something very satisfying seeing a part you’ve poured hours into designing come out exactly how you imagined it. 3mm carbon fiber was the material of choice for its high strength properties.

IMG_7283

The first unholy matrimony of the fork plate and the piston. At this point…I was getting really anxious to surge ahead.

IMG_7286

Front view

IMG_7287

The plate is attached via two M4 inserts pressed into the newly milled face, you can see them peeking when looking under the piston (the brass bits).

IMG_7288

The handle blocked into place waiting to be shaped.

IMG_7289

I had thought I had chosen some mahogany, but mistakingly selected some teak. No matter, teak was a better choice in the end. Funny thing happened when I laminated the three parts together, using only a thin CA glue as the bonding agent, the CA glue fizzed, hissed and froze nearly instantly when the two parts where pressed together. Never seen that happen before.

IMG_7290

IMG_7291

After some quick shaping, removing only what was needed to make it work, the handle was done. Soaked in linseed oil for 10-15 mins and buffed with some paste wax.

IMG_7301

A 3/4 view of the handle installed.

IMG_7292IMG_7295

The right side view shows that the the handle profile wasn’t altered since no fingers or palm would be touching it. However you will notice that the middle finger curve is subtly in place as is a little notch for the ring finger. These two little recesses were crucial for the proper and repeated hand placement when gripping this frame.

IMG_7293

The rear view shows that the left portion of the handle was removed so that the meat of the palm has a place to sit and support. The peg on the right is a place holder for a bar that will span the entire width of the slingshot, serving as a finger and thumb shelves.

IMG_7296

You’ll also see a the base plate was cut from some loose fiber filled carbon fiber place. The plate sandwiches the fist and handle, so the more I squeeze with my ring and pinky fingers, the more the frame snugs up into my palm.

IMG_7298

This pic shows the M4 inserts for the fork plate attachment and the two M3 inserts on the top that will become the alignment pins to ensure the frame is square to the target.

IMG_7299

The machining process left the edges sharp and there were some stubborn carbon deposits on the top of the piston head so into the tumbler it went for an overnight toss up with steel pin media.

IMG_7300

While that was working itself into a frenzy, a quick sight pin was made from 1mm carbon fiber board. This will attach via the same screw as the fork plate attachment.

IMG_7302

The edges of the piston head where the gaskets used to be were too sharp so some thin leather with some contrasting stitching was applied. This covered up the sharp areas but also gave it a nice upholstered look.

IMG_7314

The last thing to add was a 2.5mm hex tool (made from a 1/4-20 thumb screw and a saw off section of Allen key). Some details were hand filed into the head so make it look like a gas cap.

IMG_7317

First 10 shots on a 2.4″ target, 3 landed in the circles and 1 bulls eye.

IMG_7316

A final spit polish: some orange M4 washers, a threaded rod with carbon fiber sleeves and .75″ aluminum balls completed the Spanish Cafe Racer. Enjoy the slide show!

IZA_0727

IZA_0728

IZA_0729

IZA_0732

IZA_0735

IZA_0737

IZA_0738

IZA_0741

IZA_0744

IZA_0736

IZA_0734

IZA_0733

See you all very soon at the first Annual South East Slingshot Tournament, March 11-12!

If the pictures weren’t enough, here’s a video of the road/range/shooting case I made for it!

Posted on 6 Comments

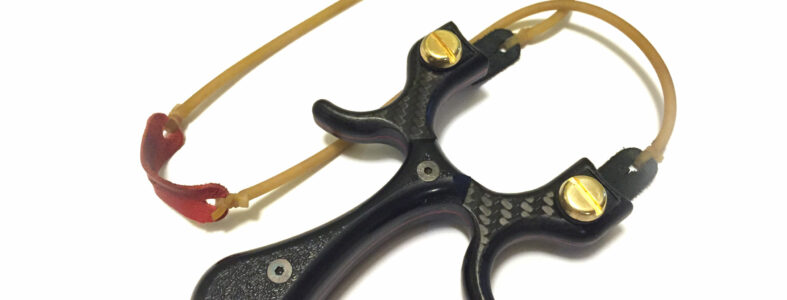

Enzo Carbon Fiber Hydra Slingshot

I’ve had this carbon fiber board in my shop for half a year, waiting to be made into something awesome, my recent CNC adventures (see my LunchBox CNC instructable) have allowed me to actually USE this material and take advantage of the awesomeness that is CF.

IMG_4451

The CF board I have has one shiny side and one rough side, this is likely why I was able to buy it so inexpensively. To achieve the correct thickness to start with, two sections of this board were glued together to make one solid sheet of material. I rough cut the 4″ wide board with hack saw, you always want to use a saw with lots of teeth so not to tear out the fibers.

Using 5 min 2-part epoxy and a similarly sized sheet of vulcanized fiberboard (plastic cardboard spacer material), the two halves of the sheet were bonded and clamped to cure for 24 hours.

IMG_4461

When using epoxy, it is important to properly mix the two parts for a good amount of time. 5 mins epoxy is a WORKING time, not setting up time, so take an extra 30-45 seconds to really whip it up. Normally, you would key the mating surfaces so that there would be a lot of texture for the epoxy to grab on to, in this case, since the CF was already textured and rough, that part was already done.

It also critical not to put too much pressure on your parts, you want good coverage and bonding of the epoxy, but you don’t want to squeeze it all out with too much pressure from clamps. I use a number of pony spring clamps of various strengths, light duty ones to light clamp on the sandwich so not to have the two parts skate around. Then slowly add more medium duty spring clamps until the pressure is evenly distributed.

IMG_4462

This is where I may lose some of you…but stay with me..it’ll be worth it.

This slingshot design, which I call the Hydra (see more Hydras here) is one my favourites. I basically designed it to be done with metal or a composite like CF or G10. The skinny arms just can’t be made from wood. I altered the design a bit to accept a special attachment method for leather band tabs.

Leather band tabs are just another way to attach rubber to a slingshot frame. A piece of leather is either lashed, glued, clamped otherwise attached to the slingshot tip and then the rubber is tied on to that, it’s a very common attachment method and favoured by the Spanish target style of slingshot.

My method of attaching tabs to a frame is called the ‘Tapped Tab’, because the frame’s tip is tapped with a 1/4-20 thread and the tab is attached via a bolt. The tab is also threaded through a horizontal slot to equalize the pressure on the fork tips. This type of attachment requires the materials of the slingshot to be very strong and stable, typically aluminum or a composite.

To design the slingshot, I used Adobe Illustrator to create the 2D pattern and accurately size the holes. From there, the pattern is saved out to an SVG (scaleable vector graphic) and opened up in to MakerCAM (a free CAM software to generate G-code). MakerCAM will allow me to program the feed rates and types of cuts I want (pockets, drilling, profile cuts etc).

I believe I ended up with these settings:

15 Inches per Min Feed

5 Inches per Min Plunge

.05 Depth of Cut

It was slow, but it was very accurate.

I used my LunchBox CNC to cut it out.

IMG_4463

Instead of tapping the CF directly, I opted for a press fit threaded insert. I also made holes to accept a M3 threaded insert for attaching the handle scales to.

IMG_4464

Then it was time to press ‘start’ on the CNC machine.

The bit used was an 1/8″, single flute, downcut carbide end mill. This gave the biggest chips and the downcut left the surface very clean.

I chased the bit with the shop vac hose to eliminate any carbon dust and debris that may fly away during the milling process. With the bit spinning at 10,000 RPM but taking very light .05″ cuts, the job took 23 mins. The result was a very clean and accurate representation of the 2D CAD model.

IMG_4465

IMG_4466

IMG_4467

IMG_4468

IMG_4469

The final thickness of the CF slab was .47″ and the 1/4-20 threaded inserts are .5 so I had to shave off .03″ on with my lathe to get them to seat flush with the surfaces.

When installing these inserts, it’s easiest to thread a bolt into them and then press them into place. I added a bit of CA glue when it was 2/3 in to really set them into the hole.

The M3 inserts (can be found on eBay for a few dollars for 100’s) are 10mm long and were just pressed into place. M3 screws are very common as well as most electronics are assembled with that size screw.

IMG_4470

IMG_4471

The Hydra is what is know as “pinch grip side shooter”, the deep round sections near the middle are pinched between the pointer finger and the thumb and the frame is held sideways (forks parallel to the ground). The slingshot is already looking pretty cool, but it’s a pain to hold. To make it a more comfortable shape, the edges need to be rounded and some more beef needs to be added to the handle area.

I didn’t take any pics of the CNC cut of the handle scales, but the process is essentially the same. The material is 3/16″ thick haircell texture ABS sheet. My previous incarnations of this design had 1/4″ thick scales, but for this special one off Hydra, I wanted the scales to blend into the frame.

IMG_4475

IMG_4476

My though process about using the 3/16″ thick ABS was if I used a 1/4″ round over bit, the entire edge and a tiny bit of the CF frame would be rounded over, resulting in seamless transition between scale and frame. It worked out very well.

After shaping both the scales and labeling them to their mated side, I focused my attention to the frame. I switched to a 3/16″ round over bit and sped up the router speed. I took careful note of how far to plunge when machining the ‘arm pit’ areas so that the transition between the raised scale and the flat frame would be even and smooth. The same amount of attention was paid when I was machining the inner fork area.

IMG_4477

CF is nasty stuff, if you sand it, it turns everything black and the dust is awful. To avoid this, you can wet sand. It takes a bit longer but the result can be washed away and the CF dust is virtually eliminated.

The CNC machine and the router left the surface pretty smooth, but really give it a nice finish, sanding it required. I wet sanded with 150, 320 and 800 grit papers. This evened out the surface and preps it for final polishing.

The scales will be attached with some counter sink 6mm long M3 black oxide screws.

We are almost there.

The ‘end grain’ of the CF is now exposed and to make it a bit more stable, I sealed the edge with some cheap, super thin CA glue. This is a pen maker’s trick. Be in a well ventilated area wear nitrile gloves. You just need to put a tiny drop of glue on the edge of the slingshot and rub it with a single finger till it dries. This should only be seconds.

Repeat the process until all of the edges are coated with a thin layer of super glue, BUT if you are using ABS, be careful not to use it on the ABS surface as CA glue reacts to it and will ruin any smooth surface.

IMG_4484

Now it’s time to really make it shine. I use one of my favourite tools, which isn’t even a proper tool at all, a nail buffer. With 1000 grit on one side and 4000 on the other, the foam backed buffing stick is the perfect low tech polishing tool. Slowly but surely buff the whole surface with the 1000 grit side and then follow up with the 4000 grit.

Once you’ve achieved the level of shine you like, take an alcohol swab and wipe off the slingshot. This will remove any transfer of materials and clean up any residues. DO NOT USE ACETONE, acetone will react ABS and just melt it.

IMG_4478

IMG_4479

I also shined up the brass screws I am going to use to attach the tabs, the same buffing stick was used

IMG_4480

IMG_4481

IMG_4482

I don’t know about you, but I photograph my work as soon as I am done with it. This way, it’s in the best possible condition it can be in. This project was so much fun and it really tested my materials knowledge, having never worked with CF before, I relied on my previous knowledge of composites and plastics to inform my machining strategies.

I am quite pleased with the result and the heirloom quality combined with the high tech material and methods make for a great end result.

IMG_4485

IMG_4486

IMG_4487

IMG_4488

IMG_4489

IMG_4490

IMG_4491

Thanks for hanging out and I hope you get something out of this.

-Eric/Metro



Posted on Leave a comment

Ivy Leaguer Slingshot

Haven’t posted much in terms of Metro Made’s lately, so here we are with another unique slingshot build. We’ll let the pictures do most of the talking, but in short, this slingshot is proof of concept for more advanced build that I’ll write about later. The concept is to make a wood slingshot with a leather inlay, so let’s go!

I started with a very familiar frame, the mighty Tyton. Since I need the absolute precision since there are lot of different materials that need to mate together, I decided to go with laser cutting. The outside profile was expanded 1mm for the cut and a ‘true’ profile was etched onto the outside cherry wood. Within the profile on the cherry, a 1/8″ border was also laser cut. To create a substrate for the leather to be attached, I used some interesting zebra wood that would reveal it’s grain when the edges are sanded.



IMG_3776

After fitting the wood, it was time to cut some leather. Some 3mm thick vegtan leather was popped into the laser bed and cut. The design included some pin holes and the edges have .5mm holes precut to accept thread.

IMG_3781

Taking some #69/V70 nylon thread, a line of stitches was hand stitched into place, taking great care not to over tighten them as the stitching is purely for decoration. A bloodwood Metro skull will be fitted later for a nice contrast.

IMG_3783

There was a step I skipped, I used the my new Shapeoko 3 CNC router to cut a 1/4″ emerald green acrylic core. Once cut, the scales were glued onto it and the edges were sanded back to the ‘true’ profile. I test fit the leather inlay with the barrel pin screws.

IMG_3788

Once the edges where hand filed to shape, the whole slingshot (minus the leather) was sanded down to 800 grit. After attaching the leather with epoxy and the barrel screws, the Ivy Leaguer took a bath in boiled linseed oil for 2 hours.

IMG_3789

The last detail is to use the Metro skull maker mark punch to emboss a subtle mark on the backside.

IMG_3797

Then it was off the photo shop!

IMG_3798

IMG_3806

IMG_3807

Thanks for reading another Metro Made!

You like this slingshot? Get it here: Ivy Leaguer Slingshot

Posted on 1 Comment

Metro Made | The Molly Pick-Nick Slingshot

A few weeks ago, I was fortunate to come across some new materials gifted to me by a fellow slingshot crafter, something called GPO3. GPO3 is a loose fill fibreglass composite, commonly used to insulate electrical installations. Like all things that are flat and tough, most times knife makers will use it to graft onto their handles. GPO3 has a nice consistent red colour throughout with some subtle, long fibrous texture.

When I got my hands on it, I didn’t know what to do with it, use it as a core, use it as a scale material. I had a few thicknesses, 1/4″, 1/8″ and a 1/16″ stock. I finally go to making something, using the 1/4″ as a core, call it an experiment. GPO3 is strong enough to be a stand along slingshot as the long fibres combine for a very tough composite with very little flex.

What came out of the experiment was this:

IMG_2799

IMG_2800

Resemble anything? Did you think…hot dog? I did. So that was aptly named the Hot Dogger. Here’s a quick video of me shooting it.

I enjoyed the feeling and look of the GPO3 so I went for something a little more ambitious, something kind of colourful and not everyone’s taste but I felt I needed to make something for once and not have to post rationalize features or design choices. This would be a through and through concept to completion build.

The inspiration, this picnic pin-up painting by Harry Ekman.

Harry_Ekman__1

So let’s start with the core of it. Recently, I have heavily favoured the OTT Tapped Tab Tyton slingshot. I can shoot it sideways and upright and have great success for both, each have their advantages and disadvantages. So to make this build extra special, I decided to stick to something I knew.

I am going to skip the part about laminating, if this is your first time reading, you should check out this post to get up to speed: The Spanish Knight. The 1/4″ aluminum core was laminated with some specifically chosen coloured liners followed by an outer layer of 1/8″ GPO3. The colours chosen by the most common, and my most favourite hot dog condiments: yellow for mustard, red for ketchup, green for relish and white for sauerkraut. The laminatatins are all held in place 4 solid aluminum pins. Here you can see the partially finished core with pins glued in. Pretty standard stuff when gluing differential materials together.

IMG_2880

Leaving to set up over night and coming back to it in the morning, the pins were ground flush and then the edges of the entire slingshot where passed over a 1/8″ round over bit on the router.

IMG_2881

Now..the fun part. Instead of just using regular maple, I went with a nice selection of quilted curly maple.
Using small strips of spacer material, I built up a candy stripe pattern found on old school drinking straws and then selected a small bit of zircote to reference my favourite picnic beverage, cola.

IMG_2882

Here is the slab, overflowth with epoxy resin to fill in any gaps.

IMG_2885

The back side scale was done in much the same way but I went back to the pin-up image to pull some colour choices. Some yellow heart from her dress, the white and blue from the picnic blanket. At this point, I’ve decided her name is Molly, so shall the slingshot’s name be.

IMG_2884

Letting the epoxy slabs cure over night once again, and in the morning sand the surface flush to reveal the contrasting, almost graphic novel style material slab.

IMG_2889

Once the shape of the scale was traced out on one of the slabs, I taped them together to work on them simultaneously. This also made pulling them across the router bit a lot easier. These were sanded to 600 grit and it was beginning to look like I was going to pull it off.

IMG_2890

Laying the scale on top of the core, it was all coming together.

IMG_2892

…and a quick mock up to see how it would look. The hot dog is strong with this one.

IMG_2895

I had previously posted about a new tool I got in the shop, a mini laser engraver. To add more detail, I etched an ant on one scale and a scaled down (6mm) Metro Grade skull on the other.

IMG_2898

IMG_2898b

In the above picture, I already had attached the scales onto the frame. Seeing how these were decorative and weren’t structural, I felt there was no need to pin them into place. CA glue (super glue) bites onto GPO3 very hard and is a fairly secure bond.

Once everything has set up and permanent, it was finishing time. The GPO3 really needs no finishing, but the surface is dry, dull in colour and often will shed tiny fibreglass shards that will itch for days, so something to tame the mane would be helpful. On the Hot Dogger, I used just paste wax to finish the GPO3 and it worked very well, so I knew that waxes would help. The wood needed an oil and wax finish so my best choice was to use my trusty linseed/beeswax combination finish, literally named Tried and True (available at Lee Valley).

I slathered it on liberally and let is set up for about an hour before touching it, then I hit it with some heat from a hair drier to open up the fibres of the wood to let the finish penetrate and liquify the wax too. The colours really pop when the finish gets applied.

IMG_2897

While I waited for the finish to set up, I made up a set of BB bands and selected some hardware to attach them on to it. These particular brass thumb screws are $4 each, but are well worth it.

IMG_2899

IMG_2900

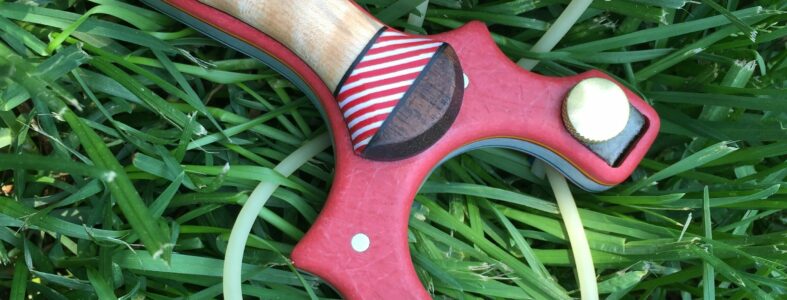

Rubbing down the wax for a final time with clean cloth, it was time to take Molly out for a nice sit in the grass.

IMG_2902

IMG_2903

IMG_2905

IMG_2906

IMG_2907

IMG_2908

IMG_2910

IMG_2911

I hope you enjoy this build, I know I did. It’s not for everyone, but then again, I usually build what I like to see and hope others enjoy it too.

If you are headed to the 2015 East Coast Slingshot Tournament, you will be able to see this and many more of my personal custom slingshots in the flesh. I will also be hosting the Craftsman Roundtable discussion with master builder Nathan Masters of Flippinout Slingshots and SimpleShot.

-Eric

Posted on 3 Comments

Metro Made | The Wormhole Attachment (Lumbri Tyton Slingshot)

I recently bought a new Chinese cast aluminum slingshot called the Tiger Scorpion, while the attachment system wasn’t new (I have a few frames with the same style tip), the shape was kind of neat.

So I banded it up with some bb tubes and played around with shooting it..it was neat! I had set it up with a single tube with a ball in the tube end, then after one particular shot, the single tube slipped into the big hole as well as the small hole….bling..lightbulb. I quickly undid the bands and ‘wormed’ it through both the big and small holes, terminating at the small hole. Kind of like the Wave attachment.

IMG_2696

IMG_2697

Boom, instant OTT single tube attachment…this got me thinking..the Tiger Scorpion, while cool, wasn’t 100% what I liked. What I do like is my Tyton. I have practically packed up everything to send to Peppermack of Cracked Pepper Cataplts, so when the urge and inspiration hit…I was nearly devastated, BUT I have never been so happy to have found two extra cores in my shop.

I took my digital file of the plain tipped Tyton frames I got cut for modding and discovered that there would be room for a big and small hole set up like the Tiger Scorpion, but what I wanted to do was make the smaller hole, even smaller than it was on the T/S so it would be more of a friction fit with no ball in tube needed. Thus the Wormhole attachment was born, and the namesake for this slingshot, the lumbricus terrestris: an earthworm.

I started by gluing up two plain tipped Tyton frames with a blue spacer in the middle. I pinned the top two pin holes with aluminum and peened them into place before flush sanding the face.

I layed out the new hole patterns, a big 5/16 and a smaller 3/32, with connecting channels to the outside of the fork tips. This would allow for single tubes or looped tubes if I fancied it. From there, I shaped the tips till they were rounded and a divot was filed into the top of the tips to center the bands. I also shaped the finger and thumb grooves like my other Tyton mods.

IMG_2699

IMG_2700

You can see here how the Worm attachment works. Since the band makes a 180 degree turn before rolling over the tips, there is no way the band will slip out.

IMG_2701

IMG_2703

From there it was time to dress the Lumbri up! I shaped a small bit of ‘patriot’ pattern Kirinite. It was just wide enough to get to the base of the handle. After profiling it, I resawed it into to identical halves and flushed the faces. From there shaped and finsihed the front edge of the scale that touches the surface of the slingshot, like building a knife since you can’t access that area with out really damaging the surface of the slingshot.

After fitting a 1/4 brass tube a 1/8 pin, I decided to try something I’ve seen 1000’s of times on custom knives, the very popular Anso texture pattern, an intersecting series of scalloped grooves. After plunging in for my first couple of grooves, I could already tell this was going to look sweeeeeet.

The Anso pattern is named after Jens Anso, an fellow industrial designer, custom knife and gear maker. Jens first did the pattern and has since been used on many custom knives and equipment. Here he is adding this trademark texture:

Rough cut and shaped scales.

IMG_2704

The rest are final pics, I didn’t want to ruin my work flow as the dust from the Kirinte is heavy and gets EVERYWHERE. In the end, I buffed the scales and matt finished the aluminum. I also added a Paduak makers mark and coated it in superglue to seal it up.

IMG_2708

IMG_2709

IMG_2710

IMG_2711

IMG_2712

IMG_2713

IMG_2714

Thanks for stopping! See you at ECST 2015!



-Metro









Posted on Leave a comment

Metro Made | Cutting Band Grooves in Slingshot Forks

This is a short tutorial and some would consider it a minor detail, but as they say, the devil is in those said details. In this Metro Made, I show you how to I cut band grooves in slingshot tips.

Band grooves are important as they aid in the attachment of bands when using the wrap and tuck method. The grooves also improve safety as they seat the band tying rubber and prevent it from slipping off the tips of the forks. Having evenly space and equally spaced band grooves improves the accuracy of the slingshot as the bands would be tied equally on the slingshot’s fork tips.

How far from the fork tips edge is completely up to you but I generally go with a minimum of 1/4″ish from the edge of the band groove to the tip. It really depends on what kind of bands you shoot, how much band attachment rubber you tend to use…but here’s what I like. I enjoy using single cuts of the thinner Therbands, blue & black, for a lighter draw and faster retraction, as such I don’t need much of a band groove, but I still need one there.

I begin by marking where my band groove’s center will be. To mark them evenly on all the sides of the fork tips with the same distance from the tips, I use my trusty drop compasses.

Here, I’ve used my blue lead to mark. Why blue? It’s the first drop compass I picked up.

IMG_2136

I use a very fine tooth razor saw and cut down the line. With the a lot of teeth per inch, the razor saw won’t cut much but the surface of the metal or wood, but the point isn’t to cut the through the tip, just to make the blue line indelible.

IMG_2137

The blue line is no more, but replaced with a shallow, straight cut.

IMG_2138



I then pick up a triangle file and seat one of the tips and pull 4-5 stokes to deepen the line into a shallow groove. You want to open up the material so that a round file will have a place to sit in and not skip around. I typically use a 1/8″ diameter round file but if you want a bigger one like a 3/16 or 1/4 groove, you may want to go a bit deeper with the triangle file to ensure the larger round is placed accurately.

Remember, slow is smooth, smooth is fast. You can check your work after each stroke or two, if you mess up, you can correct it.

IMG_2139

Now for the real magic.

Use the round file to open up the channel to a round groove. I usually don’t go past 1/2 the depth of the file, approx 2/5 of the way. Again, slow is smooth, smooth is fast. Check your work as you go, if it’s deviated left or right, you can correct it.

IMG_2140

After about 10-12 strokes with the file. If there is any material blowing out the back side, you can run the file in the opposite direction to clean it up.

IMG_2141

Now do this 3 more times and your band grooves are good to go!

You could also do this to the front and back of the frames, but I usually don’t.

IMG_2142

A better look at the whole package.

IMG_2144

In case you were wondering, the frame is a new aluminum core we have yet to release, based on our Tyton design.

IMG_2145

With some Theraband Black tied to it, a 15mm-10mm tapered cut at 7.5″ active length, my formula for deadly fast bb bands.

IMG_2148



So that’s it.

A quick demo of how to cut accurate band grooves on pretty much any board cut style slingshot.

Thanks for reading!

-Eric



Posted on 3 Comments

Metro Made | The AS-3 Mini Laser Engraver

Recently I’ve been in hardware mode, ramping up for this slingshot making season. While I make them year round, spring time and the following summer months is really when I hit my stride. I am not sure why, but the warmer months and the increased exposure to the sun helps motivate me to make more products for the outdoors. To aid my craft, I’ve combined a lot of old time practises with new emerging technologies. This Metro Made is about the AS-3 Mini Laser Engraver/Engraving machine, at the time of this post you can find this for about $200 USD shipped direct from China.

Laser etching isn’t something emerging, in fact I’ve incorporated laser cutting and etching into my work VERY early on forming the initial precision design style that I look for in everything. What is emerging is the variety of smaller, very affordable laser etchers that are easy to set up and use. I am spoiled since I am used to using larger units that shoot out 75 – 150 watts of energy to burn and cut materials, this little engraver only spits out 500 mW, that’s 1/2 a Watt.

Nevertheless, a .5 Watt of power is better than 0 Watts of power.

When I first received the unit (model AS-3 500mW), it was a paper weight, no software included and worst of all, no instructions. Being the nerd that I am, I am pretty familiar with lasers, but with nothing to base the operations, it was useless. Luckily, I bought this off Aliexpress which usually has a pretty good customer to seller communication platform. I was able to leave a message for the seller asking for the software and finally chatted with him directly. Once the Acan Mini Laser Engraving software was installed, it moved like it was ready to take over the world. (Yes, it’s written Larser, think of a person who speaks Mandarin and then spell LASER phonetically,)

21692_10155326938260391_6868779296365593771_n

Unfortunately for me, this little guy (thusly named Grumpy, since it has a face on the front) ONLY runs on a PC. I’ve been a Mac user for more than half my life, but I have been exposed to PC’s for much of it due to the same machine/software interface constraints. Needless to say, I wasn’t happy but I contended with the problem by firing up an old tower and making it my “laser station”. Side note: I saw that this tower also has a parallel port, which makes me want to get one of those 3040 or 6040 CNC’s that ONLY runs off PC AND a 25 pin parallel port.

11164085_10155334920825391_5755688_n

After playing with the software and finding the limitations of the machine, it was time to test it out! Of course, I had to burn the Metro Grade skull onto some useless splintered walnut.

This turned out awesome. I soon discovered that there are actually 2 variables to change, like on most machines, the intensity of the laser fire and duration of the laser. These are controlled through the software, a simply single window that only responds to BMP or PNG files. The intensity of the laser ranges from 0-255%. Why 255% is beyond me, but that seems to be the limit since it would not let any number higher be typed into that the field. The duration of the laser effects how much heat the material receives and how long the laser lingers on the area, this is represented in milliseconds (0 – infinity, aka setting your house on fire)

You can play with these two to achieve the right depth of engraving and speed. I prefer to use less intensity and slow burn times since it saves the laser from overheating. Sometimes you need the faster speed with higher power if the material is sensitive to heat (like some thermoplastics).

It wasn’t long after that I took a prototype plywood Jester slingshot and put it under the laser knife.

That turned out great. The quality of engraving was very good, very crisp edges and was done in about 8 minutes time.

So far, I had only etched three types of wood with good success on all of them (Maple, Walnut and Birch). The primary reason for me getting this laser was to etch wood, but lets try some cardboard. Not just any cardboard…maybe the front of a Moleskine Volant…maybe with the Metro Skull…and maybe to keep track of the weirdness with the software and hardware….maybe like this:

20185_10155336480070391_8678069695786015725_n



Lining up the etch was kind of odd, but once I understood where to line up the X-Y origin (top left corner), it was easy to lay out the centre line and where it would go. The working area on this laser is only 10cmx12cm, which doesn’t seem like a lot but when you are etching emblems or small text, it’s kind of the perfect size. I’ll have to build a jig or at least a sacrificial bed to put under the gantry and etch in some grid lines.

11156269_10155327294450391_5532043696828176553_n



The AS-3 is a violet laser so it came with these super rad green glasses to protect you from stray laser fire from burning your retinas. Since I wear glasses, these were kind of a pain to wear. I came up with this, a super clamp with a universal arm holding a 4″x6″ piece of green plexiglas, this shields me from the laser while I sit at the desk.

11150871_10155327371535391_6266016830887772885_n

UPDATE: RIGHT after I posted this I decided to make a small sub bed for Grumpy and then make a grid pattern BMP to etch onto it so I can line up work better and get a better sense of the working area. 2.5 hours later, the grid was done etching.

11138075_10155338155120391_3992655235970569749_n

I am really happy with this new addition to the Metro Grade tool family.

Welcome home Grumpy.

-Eric

PS, if you are on Instagram follow me @ericausome

Posted on 1 Comment

Metro Made | The Italian Job Slingshot

Since I started making slingshots, there have been a lot that have gone out the door. More and more I have less and less time to appreciate them before they do leave my shop. It was time to build one for me and me alone, one for the ages, one for me to take to tournaments and show off my skills as craftsman. I call this build…the Italian Job.

This all started when I came across a unique material, a vintage, hand cast acetate tortoise shell made by the famous Italian house, Mazzucchelli. This amazing fluid, subtly textured, semi transparent material is common used for eyewear but I managed to acquire a few sheets at 8mm thick. This was the anchor to my flagship slingshot.

I used one of my most comfortable frames, a modified Mule (designed by Mark Toddy) I like to call the Three-Trick-Pony. The tips are able to use three types of bands, hence its three trick monicker. The 1/4″ thick aluminum frame was scuffed and then tortoise shell was laminated onto it. I then mixed up some more epoxy and incorporated some espresso beans which filled the hollow voids in the aluminum core. This was the 2nd nod to the Italian theme.

IMG_9857

IMG_9858

Once the epoxy had cured, a  quick sanding on the belt sander made the cast beans flush with the surface of the frame.

IMG_9859

IMG_9860

After trimming and sanding the tortoise shell flush with the frame’s perimeter, I chose to use another very unique material: C-Tek. This white C-Tek was chosen as I felt it mimicked the hexagonal ties found in many Italian cafes. It was at this time, the pin holes where filled with brass tubing.

IMG_9866

Separating the C-tek is a red vulcanized fiber spacer, this will play into the theme as you will see later.

IMG_9867

The pattern of the tortoise shell beginning to show up.

IMG_9868

The espresso beans are barely visible, but after some buffing, they will be easily seen.

IMG_9869

A close up of the C-Tek. The opaque white with aluminum honeycomb really does come out looking very nice.

IMG_9870

For a better ergonomic grip, a pinky stop made of highly figured olive wood separated by another fibreboard space, but in emerald green. Completing the Italian national colours, the green spacer helped interface the natural wood material and the synthetic C-tek.

IMG_9871

I didn’t take too many process pics of the shaping of the tortoise shell, but I used my favourite shaping tools, an Iwaski file followed by an ultra fine 1/2 round file then various grits of sand paper till I hit 1000. I then use a hard buffing wheel with some green compound and buffed it to a dull shine.

IMG_9872

In certain lights, the cast beans are much more visable. You can also see how I used some tin foil to back the casting to prevent the red from showing up.

IMG_9874

IMG_9875

Then it was time to shape the C-Tek. The soft resin behaves poorly to power tools since it heats up very quickly so again, it was time to use the Iwasaki carving files and various grits of sand paper. I could only do so much shaping as the epoxy for the pinky stop was still curing.

IMG_9876

Before rough shaping of the pinky stop, the corners and bulk of the olive wood was bandsawed off.

IMG_9877

The olive wood sands very nicely as it is very oily and dense, so the belt sander was a good way to do a very rough shaping into a tear drop shape.

IMG_9878

IMG_9879

There is no really fast was of doing a palm/pinky swell. Manual tools again come to aid, as the roundness of the pinky swell took shape, the swirly grain also revealed itself.

IMG_9881

After some high gri sanding, and then some light buffing, this slingshot is complete.

IMG_9882

IMG_9883

Sexy archive photos, note the Metro Grade skull etched into the pinky swell

MAR_1867

MAR_1868

MAR_1871

MAR_1873

MAR_1875

MAR_1876

MAR_1878

Thanks for reading yet another slingshot build.

-Eric



Posted on 3 Comments

Metro Made | Bloodlines Slingshots – Meeting Prince Charles

May 21, 2014. The Prince of Whales visits the shop, I am tasked to present him with a unique gift made in the shop. I am proud to say, I have 2 Metro Grade slingshots in the Royal gift collection.

I call these two slingshots, the Bloodlines, as you see, one is for Prince Charles himself and one for his brand new grandson, George. These had to be unique, classic and well crafted, so I didn’t fool around with an unfamiliar shape, I went with my classic Capuchin side shooter.

My goal for the pattern design is to meld a little bit of Brit with a little bit of Canuck. Using the Union Jack as inspiration, maple, paduak and walnut is utilized to make a slightly modified version of it. Here you can see the laser cut maple as the skinny lines of the Union Jack are formed.

image (4)

As the each piece of paduak is set in place, the ‘Jack comes to life.


As I said, a little bit of Brit and a little but of Canuck. After dry fitting and making sure all the parts fit, it was time for glue up.

image (1)

Once the glue was set up, the surface was face sanded to reveal the gestalt pattern of the Union Jack being anchored by a purple heart Canadian Leaf. The paste at the bottom is a bit of ghetto wood filler for some gaps left in the lay up.

image (3)



On one slingshot, I decided to document the date, the event and the location. Also the Assentworks logo is etched into the handle. On the 2nd slingshot, some Metro Grade branding as well as “George”, for obvious reasons. Another purplehear maple leaf would later fill George’s slingshot’s handle.

image (2)

Some quick router work on the edges and some final sanding before a couple of coats of sealer.


Here are the archive photos: MAR_1530

MAR_1527

MAR_1529

MAR_1528

MAR_1531

MAR_1533

MAR_1539

MAR_1541

MAR_1543 ..and thanks to Tracey Goncalves for the images of the actual hand off. My exchange was quite short, a mere minute. His majesty was ill, runny nose to be exact so his voice was very quiet. He asked, “are these catapults?” to which I answered “yes, one for you and one for your grandson, George”. He explained how he used to play with one as a child, good to know.

It was an honour to meet him.

817

820

822

819

It’s funny to review those photos and look at my face….I can’t make a single serious face even when meeting royalty.

Thanks for reading!

-Eric

Posted on 4 Comments

Slingshot BB ammo philosophy

This is a bit of a different kind of post, usually I go through a complicated or simple build of whatever I felt like building, but this time I am going to talk about the kind of slingshot ammo I like to shoot: the humble B.B.

Just to be clear, I am talking about the tiny ones, the .177 (4.5mm) kind, not the larger kind. It is pretty common to call anything steel and round a BB but really, a TRUE BB is .177 calibre and has its roots in shot gun shell ammo. I am going to go through why I like shooting them and a few of my favourite band measurements so you can enjoy this inexpensive, addictive, fire-and-forget ammo.

1. Cost

Crosman-0747

One of the biggest (or smallest if you prefer) reasons why I love BB’s is the cost. At the time of this article, a bottle of Copperhead 6000 ct BBs is about $16.99 Canadian. After taxes (here in Manitoba) that’s just shy of $19 for 6000 rounds. That’s 1/3 of cent per round. Yes, a FRACTION of a single cent per round. You can understand why I call these fire-and-forget ammo.

Don’t want 6000? They also come in 1600 ct bottles, which equates to 1 cent per round. Considering we don’t even have pennies anymore, 1 cent per round is VERY affordable.

I was pretty aggressive on shooting these little guys all spring, summer and fall, and even gave away a whole bunch and only managed to make my way through about 3/4 of a 6000 rounds.

2. Band life

A typically BB weighs in at 5.1 grains, this equates to nearly nothing when it comes to slingshot ballistics calculations. To properly throw a bb, extremely light weight bands and a pouch combination has to be used. As such, light weight bands that throw BBs typically last an extremely long time compared to the mere 100’s of shots you get with most other types of bandsets. A BB can travel in excess of 250 ft/s, so even at a standard tournament distance of 33ft (10m), a BB will travel in a very flat trajectory.

BB pouches have to be light weight and sized correctly. I found a single layer kangaroo was the best pouch material, at least to date.

I cut my pouches at 10mm wide x 50mm long, with a 2mm center hole.

Since discovering the joys of shooting BBs, I’ve done a lot of testing in the types of bands. Here are the combinations that work well. When I write active length, for those who don’t know, it is the measurement of one of the sides of the bands from the pouch tie to the frame tie. These calculations are based on a 32″ draw length, so when you go and cut your own bands, you can scale up or down based on your draw length.

Dankung 1632 tubing @ 7″ active length (based on a 32″ draw length)

I found that the 1632 was actually a but stiffer than the pure amber latex tubing, so it was almost too heavy for BB’s hence the extra inch of length to decrease the snappiness of the bands.

MAR_2084

Pure latex .125 Amber tubing @ 6″ active length

This is one of my favourite slingshot rubber in general, let alone for bbs. The pure latex has very good elastic properties and retains a very comfortable 500-600% elongation rate before beginning to show signs of stress.

1

Theraband Gold @ .25″ wide x 7″ active length

TBG is known as a the ‘gold’ standard for slingshot rubbers, fast, snappy and long lasting due to its additives. It’s almost too much for BBs, but at very thin widths, it’ll work great. The thin strips excel on TTF frames.

Theraband Gold

Theraband Black @ .5″ wide x 7.5″ active length

TBB is a VERY zippy band set, again, topping out at .5″ wide since it is a very fast retracting rubber. The biggest downside to TBB is it’s tendency to tear if cut incorrectly. I’ve had a set of TBB BB bands last for nearly solid a month of shooting nearly everyday.

MAR_2094

Theraband Blue @ .65″ wide x 7″ active length (or shorter if you want REAL fast speed)

TB Blue is my favourite flat band BB rubber. For some reason, the incredibly light draw and the extreme speeds from that light draw is satisfying and wholesome. While it is the thinnest of the Therabands, TB Blue last just as long as TB Black, and will likely tear near the pouch tie if the bands are taken care of. Unfortunately, since it is so thin, it will tangle up the most after release, which can be annoying.

Marabunta PFS Hero

3. Frame Design

Now that we’ve discussed the KINDS of rubber that throw BBs well, this section will deal with frame design. Most of the frames uses as examples in the band life section where quite small (with except of the olive natural fork). This is not a coincident, BB’s are so light, the tips of the slingshot do not need to support the extreme pressures of a double layer TB Gold frame would need to. BB frames are often small, palm size and as such, pocket sized.

PFS (pickle fork shooters)

PFS bbs shooters are awesome, it takes all the fun of shooting a PFS and removes the FEAR of shooting a PFS. PFS novice shooters often get a little overwhelmed with the lack of a fork gap, but when shooting BBs, fork hits are much less severe. The light weight bands are perfect for practicing on a PFS.

Conductor PFS Banded 1

OTT (over the top)

Frames designed with OTT band tips make for fantastic BB shooters. Again, using the advantage of a light weight band set, small pouch design and small diameter ammo, there very little gap needed to make it work. Unlike a PFS, there is room for the pouch to clear the forks, but since the pouch is so small, even a mere 1″ is enough.

MAR_1924

TTF (Through the Fork)

Frames with TTF bands are toted to be the most accurate, I always say the most accurate slingshot is the one you have with you. Regardless, TTF slingshots with BB bands don’t really receive the benefits that larger slingshots with wider bands configured with TTF. Full size TTF frames, especially with flat bands, project ammo in a more accurate fashion because the bands follow a more natural path, remaining flat throughout the bands retraction. OTT bands, typically need to twist a bit before letting go of the ammo. That being said…since BB bands (flat bands) are so narrow, they don’t receive the same benefit as wider, full size bandsets get.

That was a long winded way of saying that TTF and OTT band configurations perform nearly the same, and are just as accurate as each other. The only downside to TTF shooting is that your sight picture and aiming point maybe below the frame (when shooting sideways, this isn’t the case when shooting upright). Luckily, as previously discussed, BB frames are typically smaller, so the sight picture typically remains open.

MAR_2051

Leather Tabbed Bands

When using leather tabs for BBs, it’s the same solution as the pouch, strong, but thin leather. The leather has to follow through with the rubber to avoid skewing its trajectory. OTT or TTF, leather tabs offer a lot of advantages and disadvantages. Advantages include decreased band friction on the frame thus leading to extended band life, consistent band length and decreased rubber consumption. Disadvantages include increased difficulty making the band set (accurate length is crucial), possible differential leather stretching and premature leather breakage.

MAR_2069 copy



MAR_2006

4. Portability

Another factor in choosing to shoot BBs most of the time is the portability.  Not only are the frames smaller and easier to conceal and carry, but a hand full of BB is potentially 100’s of rounds. I usually keep a couple of Altoids tins full of BBs so I can throw them in a bag while on vacation or driving around and have plenty of ammo to shoot and share. Heck, keeping two, even three BB shooters in the range bag is a great way to introduce people to shooting slingshots.

A pocket full of BBs can keep you busy for hours if you wish, or convert a walk in the woods into a literal cornucopia of target opportunities. Downside is if you forget you have a pocket full of BB’s, your dryer is going to make a lot of noise for next few cycles.

*tip, use a small neo-magnet to keep them in check in your pocket. Clumping IS your friend.

17826_10155218560345391_6775083235434420136_n

5. Training

Shooting BBs is great training for the eventual time when you want to move up to larger ammo or train for an upcoming tournament. Shooting BBs is challenging because the light weight bands can be easily misaligned or accidental frame cant could occur, there is very little feed back on the frame’s squareness to the band set. Ideally, the bands and the frame form a perfect isosceles triangle. Shooting with light weight bands forces the shooter to pay attention to their form, their frame position, frame grip and pouch draw and release. Essentially, it trains all aspects of proper slingshot shooting form.

Once you get the hang of the band’s weight and the smaller scale pouch, when you move up to a larger frame with larger ammo, everything should be much easier. You gotta walk before you run right? Well, in this case, you gotta shoot BBs before big 1/2″ cannon balls.

11070098_10155210344460391_2996877240691215733_n

Thanks for reading up to this point, its kind of a long winded way of expressing my love for BBs.

I’ll shoot them till the day I die, one BB at at time.

-Eric

Posted on Leave a comment

Metro Made | The Taser PFS

This project, titled the Taser PFS, couples a number of things that I love: machining metal on a lathe, working with stabilized wood and using leather tabs for attaching rubber to a sling.

This all started when I was poking around YouTube trying see what other country’s slingshot tournaments looked like. I came across this Eurocup coverage:

Later in the video, an interesting designed slingshot came up. It looked like a wood handle with two brass posts where a bridge attached hosting a center located sight pin. The posts and the bridge compressed two short leather tabs that attached to the rubber tubing. Needless to say, in the short few seconds that I saw it, I was intrigued.

post-9170-0-83998900-1410286812_thumb

So I set out to make something unique…not exactly like the one in the video but something I could pocket, enjoy with a variety of shooting styles and best of all, something I could challenge myself with. Over the course of my time as a designer, I’ve amassed quite the collection of materials and I am not proud to say that my stock area is more like a hoarder’s dream, and a organizer’s nightmare. For this ‘Taser” I wanted something narrow, but sturdy. A thick slab of red dyed, stabilized sycamore wood that was booked matched to be a knife handle scale was suitable for this project.

The sycamore scale slab was about 1.5″ wide, .5 thick and 5″ long. I didn’t need 5″, more like 3.5″. First thing first was to machine the sycamore and since it was stabilized with resin, this was pretty easy since it worked more like plastic than wood. BUT before machining the wood, I needed to make the posts.

I wanted taller posts than the one in the video since my plan was to attach these onto the wood from underneath and have the leather tab bolts, independent to the post. These ended up being about 1.25″ long with a 1/4-20 thread on the top tip and 10-24 threads on the handle attachment side. I also knurled the top of the tips so there would be a little bit of grip, it also added a bit of a cool look to the final product

IMG_0068

Once I had the posts all sussed out, it was time to machine the sycamore. This was pretty easy, as previously mentioned, the stabilized sycamore’s resin content really smoothed out the cutting. The handle was made into a paint brush shape and in the shoulders two holes to attach the posts were made. The holes where counter sunk on the underside to recess the 10-24 screw heads.

IMG_0069

IMG_0070

After the initial fitting, the edges of the skinny handle were rounded into a generous radius. This provided comfort and a cool reveal of the sycamore’s neat grain structure.

IMG_0071

IMG_0073

After rounding, there was an element missing from the handle’s base so I added a 1/2″ aluminum tube to serve as a lanyard hole should I choose to add one. This again brought another element of machine aesthetic to an already machined product.

IMG_0074

IMG_0083

At this point the Taser was done, serviceable as a target destroying tool. The last thing to add was the sight bridge, like the one in the video. It’s an added feature that if it didn’t serve the slingshot well, it could be removed. To achieve this bridge, I turned to another machine; the laser cutter. I chose to cut 1/8″ ABS, since ABS is more shock and impact resistant to other plastics that can be laser cut. Acrylic would shatter and polycarbonate cannot be laser cut. ABS’s soft structure gives when struck, which is good since I needed to tap a small 6/32 bolt into the top.

This pan head bolt’s groove was slotted with a file to accept a 1/32″ acrylic rod which, when hit with sunlight, will glow red. This served as a compound bow style sight pin. This worked very well in both concept and action, however, my preference in the end was to leave the sight bridge off.

IMG_0087



IMG_0088

Here’s a pic of how the sight pin looks like with some light shining on it. The coolest thing about attaching tabs under compression like this is you can shoot with the tabs rolled OVER the tips like at true OTT (Over-the-top) configuration when shooting this frame sideways, or you can pull the tabs straight back and have it like an upright PFS (pickle-fork-shooter).

Both are fun to shoot and in the end…isn’t it all about how fun it is?

IMG_0089

After etching the Metro Grade skull into the surface of the sycamore, it was time to take some juicy archive photos:

MAR_1922

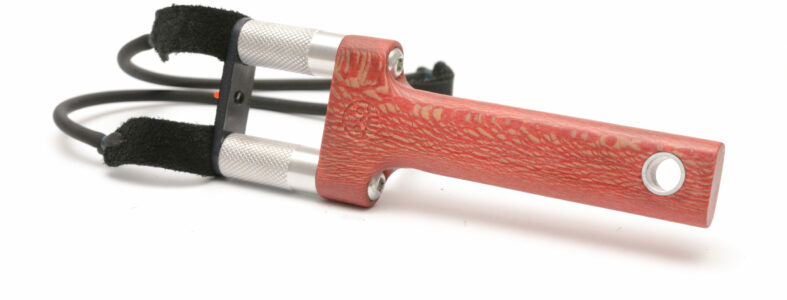

MAR_1923

MAR_1924

MAR_1925

MAR_1927

Thanks for reading another Metro Made, I know you have a choice to read other blogs so thanks for stopping by!

Stay tuned for even more slingshot builds and Metro Made posts.

Posted on 1 Comment

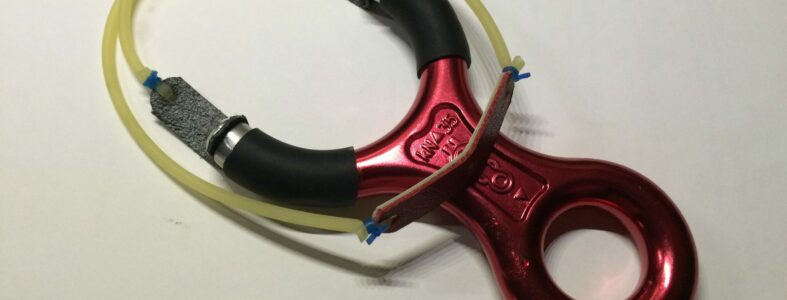

Metro Made | Tap & Tab Figure 8 Descender Slingshot Build

I am back!

January and February kicked my butt.

After what feels like an eternity, I return to the shop for a short build and an alternative take on the popular climbing figure 8 descender hardware. The last time I tackled one of these, it was more of a TTF, tubes affair. This time around, I do a little bit more machining to achieve an even more refined version of the classic slingshot shape.

Posted on 1 Comment

Metro Made | Sanding Blocks

I watch a lot of YouTube videos. I learn a LOT from them and they often spark a lot of ideas and make my list of ‘things to make’ longer than a giraffe’s necktie. I also subscribe to a lot of amazing youtube creators, a lot of times they are craftspeople who love to share and teach, but do not want the formality of a classroom. I often see interpretations of YouTube projects done by other YouTube creators.

This is a long winded introduction into our next project….the humble sanding block. The sanding block is the eraser of lines, the hider of mistakes, the last touch before going to paint, it is an essential tool with a lot of history. Simply, you can just take a block of any size, usually palm or grip sized and wrap a piece of sand paper around it and go to town. I wanted something a little cooler, a little more custom…a little more…Metro Grade.

So I went off to youtube to seek some inspiration.

I found Gough Custom knives, an Aussie residing in Canada with impressive skills and a workshop I lust after. His uber clean bladecraft is matched by his uber clean shop. In one of his videos, he goes over how he make HIS sanding block, which he uses to sand blade surfaces to sheen.

This was a great design to start from, but I needed to tweak it a bit to make it work for slingcraft. His design uses phenolic counter top material which is water proof because he wet sands his blades. I do not wet sand my projects, so I didn’t need to use that material, plus I have a lot of wood around the shop. I also didn’t want it to have hard, sharp edges, I wanted soft and forgiving because most slingshots are curved and have ample radii for a more comfortable fit. I also wanted to simplify the cutting and fitting of sand papers.

So….here were the list of things I wanted to have in my sanding blocks

1. Use a 1/4 sheet of standard 9″x11″ sheet of sand paper

2. Soft, forgiving sanding surface so it wouldn’t create flat spots

3. Be comfortable for two or handed use.

A 1/4 sheet of sand paper measures 4.5″x5.5″ so from that I derived my stock dimensions. I wanted it longer so I went with the 5.5″ dimension. This equated to a 6.5″ long x 1.5″ wide x .75″ thick block. I chose maple because it is a hard wearing material and it machines very well. I made two blocks because contrary to my list of demands for a sanding block, I still wanted one that was hard backed, with one edge square and one edge with a 1/4″ round corner.

IMG_0863

I started to make my block by using my router box with the 1/4″ round over bit. I wanted to try something because as much as I love routers, I also hate them because they are violent machines with GREAT potential for bodily harm. By clamping a quick grip clamp on the piece, I was about to hold onto it MUCH safer and provide better pressure when guiding it against the bearing. I must try this with a sling when the next one comes up. Back to the block, both edges were rounded over, as I mentioned, maple machines very well if you are smooth with your motions and your bit is clean (you should clean it with alcohol and a cotton swap after every job to clear the carbide from resin and gunk).

IMG_0864



I then switch out the box and move in the other box with a 1/4″ corebox bit in it. The height is set to about 1/8″ depth. The fence is set so the channel created is 1/4″ from the edge. Again, using the quick grip clamp as a extra hand, I ran two slots up the back of the block. This will capture the dowel rods then it comes time for assembly.



IMG_0865

Two identical rails run the length of the block.

IMG_0866

Then changing grips and the fence set the same distance, two smaller channels are run on the ends, both on the top and bottom sides. This will capture the O-ring and hold the dowel rods in place, much like Gough’s design.

IMG_0867

The channels on the top.

IMG_0868

Then it was time for some filing. I could of run the edge into the bit one more time to get a channel, but a skinny edge doesn’t make for a good clean cut. Instead, I used a 1/4″ rasp and rounded out the corners of the channels, transitioning them into the edges. This is much like when I cut band grooves on slingshot fork tips, it was a very family motion for me.

IMG_0869

Two completed sanding blocks.

IMG_0870

A little bit of sanding to get rid of the burrs and hairs left from the machining process and it’s off to assembly!

IMG_0871

Criteria number 2 was to make the sanding surface soft and forging, like a sand sponge, but without the extra cost of a sanding sponge. To achieve this I needed to pad the surface. I thought I had some craft foam lying around, but I couldn’t find it. You could also use some thin cork but that is less forgiving than foam. I used some left over underlay for hardwood flooring from a renovation years ago. Cut to roughly a 5″x3″ rectangle.

IMG_0872

I backed this with a layer of super sticky 2 sided tape.

IMG_0873



…and rolled it onto place. The other block is left bare, as I mentioned that sometime you DO need a hard backed sanding block.

IMG_0874

IMG_0875

All that was left was to cut some 1/4″ dowels to length. Gough uses some aluminum rods, I usually have some but for some reason or another, I was out! Wood will do for now, they can always be replaced. Two large O-rings also make up the kit, as does the 1/4 sheet of sandpaper.

IMG_0876

Assembly is pretty self explanatory, the rods fit into to channels and the O-rings hold them in place.

IMG_0877

To mount the paper, one rod is moved over and the paper is placed onto the groove, then the dowel is rolled into the groove. No needing to cut the paper into weird sizes.

IMG_0878

Done. Ready to sand!

IMG_0879

Nice and tidy. The best part about this design is that you have 3 sides and 2 forgiving radii to use for sanding.

IMG_0880



I went ahead and mounted paper on the hard edge one as well.

IMG_0881

To test out the efficacy of it, I took three strokes with the sanding block on this apple fork.

IMG_0882

Super smooth and no flat spots (and no premature wear on the paper)

IMG_0883

I really like this design a lot and I think I am going to make a bunch more, for at least an 80, 220, 400 and maybe a 600. I also may make a round dowel version, but that’s for another Metro Made.

IMG_0884

Thanks for reading and I hope you can get something out of this.

Be sure to subscribe to our YouTube channel! Metro Grade Vlog

Happy New Year and have a safe 2015 celebration!

-Eric

Posted on 5 Comments

Metro Made | Mini Router Table Box

More times and not, I enjoy roughing out curves, fillets and chamfers by hand. However, there are times when the might of a router with a proper round over bit is the best ‘route’. When I sought out a small trim router to suit my needs, something amazing came into my sights.

Cruising around the internet, I came across the Ryobi One+ battery powered trim router. At 5A, it’s plenty of power for slingshots and other small projects, and the best part is that it interfaced with my already large collection of Ryobi Li-ion batteries. At $50 a piece, they were inexpensive enough to get a few to save on set up time. I had the idea to build some modular boxes, router boxes, router boxes that would sit on a stand with different tools set up so I could hot swap them out when I needed.

I started by using an online resource for designing finger joint boxes, my plan is to make sorta of a square hat box with the router base sitting on the top. I entered the dimensions into the online box maker and out spit a PDF of the box. After taking the file into Adobe Illustrator, I measured the outside dimension and then generated another box, this would become the lid. I digitally chopped off the top of the base box and then lopped off the bottom section of the lid. This left me with a pattern I could start dropping features onto.

The first thing was to figure out the orientation of the tool. The Ryobi trim router doesn’t have a flat base parallel with the surface of the base, this is meant to be a hand held tool, not stationary. The base didn’t matter, it only means that it would be suspended in the box. This did two things, it allowed for height adjustment of the bit (no need for a complicated lift system) and would also allow for the router base to be level with the box surface without bracing. Measuring the base of the router, it was a 9cm square with about a 3/8″ rounded corner, so that’s what got drawn on the top of the lid. Directly under the layer is another layer that would support the head and also index the router so it would always be in the same position. This is a lot of reading without much photographic explanation but it was such a fast process the later images will make sense after reading this.

The second thing was the on/off switch, being a battery powered unit, the front of the tool needed be accessible so that it could be turned off and on while in the sealed box. So locating the switch and making a generous hole in the front panel of the bottom box was done. A rotating switch plate would cover the hole so increase the dust collection effect of the vacuum…..

Which brings us to the third feature, a dust collection port. On the back panel, a 2.25″ hole was located so that a hose could be attached to have a down draft effect. While a SOME chips may make it away from this vacuum, most will be carried away. Two additional layers of material could be glued to the inside to create a .75″ flange so that hose would have something to grab onto.

Ok….so after this was designed in both my head and in 2D, it was time to prototype in MDF. Throwing a sheet of 1/4″ MDF into the laser, one by one the panels were cut out. On top is the router with the big battery.

IMG_0807

First cuts of the first panels. You can see the plate on the near the bottom of the sheet, it’s the indexing ring and support.

IMG_0806

First dry fit of the parts. The finger joints were actually sized for stock that is .235″ thick and the MDF is .255 so they don’t line up here. Not a big deal since the MDF was just used for sizing and for first fitting.

IMG_0808

The router clears the bottom nicely and will allow for about 3/4″ of travel downwards.

IMG_0809

After editing the files to change a few details for alignment, it was time to move to some Baltic birch. You can see the indexing plate is now round, I forgot to account for the inside edges of the box. Ideally I this would of been made out of 1/2″ plywood, but the laser has trouble cutting that thick of stock. With a 10″x10″ foot print, the box will be plenty stiff.

IMG_0810

Dry fitting the plywood parts. You can see the beginnings of the dust port near the bottom of the box.

IMG_0812

I should note that I made two of these boxes, one for each router, and my 2nd one went 4X faster like with any multiple build. The glue joints on the 2nd one are much tighter, I previously hadn’t worked with so many finger joints at once. I also sanded the edges to get rid of the burning PRIOR to gluing on the 2nd one.

IMG_0813

This is basically it. The rectangular hole on the front is the switch hole, this got lengthened by hand later to adjust for the bit height. The support/indexing plate was glue in place and further reenforced by 4 countersunk screws.

IMG_0814

IMG_0816

A shot of how the router looks like suspended by the support/index plate.

IMG_0815

A quick zip on my other router table to cut the edges down and it was time to make a second one. Next to the first box (on the left) is the second box. Like I said, it was 4X faster to make the second one.

IMG_0817

Once the basic form was made up, it was time to address some performance details. First, the switch hole cover. No Metro Made project is complete without the Metro Grade skull.

IMG_0818

This is simply screwed in place (the hole on the skull plate is bigger to allow for rotation).

IMG_0819

I knew the routers would likely have a lot of vibration and with such a light weight box, it would be amplified. To combat this, two bricks were put inside the box to weight it down and some rubber feet were installed on the bottom to dampen the vibration. This also makes the whole box very sturdy when in use, less fear of it tipping over with the center of mass, well below the table’s surface.

IMG_0820

The best part about these boxes is that they are BOXES! which means they are perfect for storing the adjustment tools. I don’t know about you but I have a small collection of cheap tools, so leaving this small 8mm socket wrench and the bit adjusting wrench ready to be used INSIDE the box is great. Some commonly used bits can also be stored inside the box, I have to make sure they are weighed enough so that they won’t get sucked into the dust collector. This is also a good shot of how the dust port looks like, two additional layers of plywood make up the port.

IMG_0831

To lock the lid down, I used two 1/4-20 bolts with a flower knobs on either side that correspond to two slots cut out of the lid.

IMG_0821

Here are the slots. On the underside of the lid, on the inner corners, a thin 1mm cork strip was glued in place to increase the contact of the lid and the box. This should dampen the vibration more and also make for a better airtight seal.

IMG_0822

The surface of the router plate was TOO slick so some 220 grit sandpaper took off the sheen and added a bit of traction for better control. 4 additional screws were added to the router to really suck down the router base surface to the box lid.

IMG_0823

One final shot of the dust port.

IMG_0824

The first box will be set up with a 1/4″ round over bit almost exclusively so the 2nd box needed a few more details to make it more versatile. Aside from being a flush trim box, it will also be the box I use to cut band groove slots on the tips of slingshots. I have to buy a 1/8″ and a 3/16″ core box bits, but the idea here is that the swinging arm will pivot on one end to increase or decrease the distance from the bit and act as a fence for the slingshot to ride on. The free swinging end gets clamped down by a quick clamp. When I figure out the idea distances to swing it, I’ll make some indexing pins to easily repeat the cut.

IMG_0827

Now to install it in the shop. This whole project was spurred when I found this amazing cabinet at my local Re-Store (Habitat for Humanity) for $15. I think it was used as an mail inbox unit, obviously part of a larger installation due to the unfinished sides, it’s very sturdy. I put some medium duty casters just so I can move it around, but when I am using it, I have it blocked up in the front.

It is the PERFECT thing for organizing my thin woods and smaller blocks of lumber.

IMG_0828

The cabinet had a lip on the top side, which I actually think was the bottom, which is nice for the router box to rest up against. I freed up the area in front of the wood storage by moving the small blocks to the new cabinet. There is just enough space to get behind there and get the larger planks of stock. The modular boxes allow me to move the whole unit off the base and then move the other box into its place, no need to spend time changing bits.

IMG_0829

I know I’ve gone on and on about the dust port but router make such a mess if you don’t control them.

IMG_0830

So to close this Metro Made up, a short video of the first run on the router box. I hadn’t installed it on the base.

To celebrate the finish of these boxes, I made this Blood Orange Tyton with it. The smooth radius courtesy of the 1/4″ round over bit.

MAR_2081 MAR_2083 MAR_2084  MAR_2087

Thanks for reading and have a superb holiday season!



Posted on 2 Comments

Metro Made | Rotating Tip Ergo Slingshot

It was time to try something new, something exciting, something….with moving parts. Slingshots aren’t known for moving parts, but it was time to try it out. Rotating fork tips aren’t something I came up with but I did want to take a stab at it and try to make a deadly accurate BB shooter.

I started by designing a shape that is a smaller frame than usual. A pinch grip style with some beefy fork tips. This would be cut from 3/4″ maple so I knew it wouldn’t be a problem for structural integrity. The plan is to drill a hole straight down into the fork tips, tap it when a thread and screw in some machined sleeves.

IMG_0683

After transferring the pattern onto a 3″ wide board of maple, it was cut out and sanded to the profile. A 1/2″ aluminum lanyard hole was epoxied into place.

IMG_0684

IMG_0684b

After shaping the grip area with some generous curves, the handle was shaped with some nice crisp chamfering.

IMG_0685

IMG_0686

IMG_0687

A 1/2″ pocket was drilled into the face with a Fortsner bit and a walnut maker mark button was pressed and glued into place.

IMG_0688

Now the tricky part, holding the frame in a drill press vice two 7/32″ holes were drilled into the tips. These holes where then tapped with a 1/4-20 tap. After removing the tap, thin cyanoacrylate glue was dripped onto the threads to strengthen them. After the glue cured, the threads were chased with the tap again and more glue was dripped in.

IMG_0689

After the glue was fully cure, the frame was dropped into a bath of boiled linseed oil for a 25 minute soak.

IMG_0690

IMG_0691

Two coats of light polyurethane sealer was wiped on. This was left to dry for some time.

IMG_0696

Now that the frame was done, it was time to make the business end of the slingshot, the rotating tips. The rotating tips’ concept is that the bands would rotate on the axis of the fork tips, eliminating the abrasion it would normally experience when the rubber retracts into the frame.

We start by facing some 5/8″ 6061 aluminum.

IMG_0703

The tips are going to be 12mm high with a groove of 4mm to help the bands seat themselves nicely on the center.

IMG_0704

The toughest part about making rotating tips of this kind is making two identical ones.

IMG_0705

Rechucking the tips after parting them off the stock, it was faced and the a centerdrill was used to help start the hole.

IMG_0706

Then a 1/4″ hole was bored straight through the tip.

IMG_0707

Using a big single flute counter sink, the tips were chamfered so that the machine screws would nest inside for a cleaner look. IMG_0708

Exhibit A…machine screw seated and clean look achieved.

IMG_0709

Rinse and repeat.

IMG_0710

Now it was time to screw tips into place, adding a drop of super glue into the threads to make sure the machine screw would not back out again. A thin washer was added to decrease friction and make the action smoother. The screw’s pressure was tuned so that the tips would rotate but not wiggle.

IMG_0711

Again to the other side. In case you were wondering, the screws screw into the fork tips about 5/8″.

IMG_0712

And we are done! Time tom make up some bands.

IMG_0713

A band set with some very small loops made up…

IMG_0714

A pair of ring expander pliers help stretch the loop out so they could be fixed over the tip.

IMG_0715

And we are done!

IMG_0716

I am happy to report that the rotating tips not only look super cool, but they also work REALY well.

Some quick shooting of the Capuchin RT with the same aluminum rotating tips.

Thanks for reading another Metro Made!

Happy Holidays!

-Eric

Posted on 4 Comments

Metro Made | How to make a slingshot pouch

While showcasing at the Toronto Mini Maker Faire, we got asked time and time again “how accurate are these slingshots?”. I always answered, it’s as accurate as you want it to be, meaning you have to put in the time in practicing and training. The best slingshot in the world is the one you have in your hand. Proper pouch grip, pouch draw, pouch position and pouch release are among the most difficult thing to master, but there are still things you can make to help you shoot more accurately.

This Metro Made is about pouch making. Not the kind that you put stuff in, but the kind you tie rubber to and whip through the forks of a slingshot loaded with your ammo of choice.

Let’s start off with the tools and materials. You will need:

  • Sacrificial surface to punch into (mine is a 4×6 piece of UMWPE)
  • Self healing mat
  • Steel ruler
  • Thin line pen (ball point is best)
  • A large and a small hole punch (I use a 5.5mm and a 3.5mm)
  • Mallet (I am using the Death Rattle Mallet)
  • Scalpel or a sharp Xacto knife
  • Ammo choice (3/8″ steel in this case)
  • Leather (more on this)
  • Optional: Rotary Cutter
  • Optional: Right angle square
  • Optional: Drafting Circle Template

MAR_1930

Once we’ve gathered all the materials and tools, it’s time to design a pouch. There are a few factors to consider when designing a pouch:

  • What kind of rubber is going to be tied to it?
  • What ammo is going to be used?
  • How big are your fingers?

I’ve chosen 3/8″ steel balls as my ammo, and to shoot the heavy 3/8″ ammo, you need to use a medium amount of rubber which means there will be a lot of pressure around the tie hole. The ammo needs to sit inside a folded pouch nicely, not to spill over the sides but also not too much leather since the more weight there is in the pouch, the slower the shot. As mentioned, there will be at least one layer of medium weight rubber attached to these pouches, so the area surrounding the pouch tie hole needs to be beefy enough not to blow out. Also, the thickness of the rubber needs to be taken into consideration.

This all translates into the design on paper. The length is 60mm, which when folded in half nests the 3/8″ steel ball nicely and my fingers would be just touching the rubber ties. The width is 20mm which is a balance between cradling the ammo and allowing for a beefy rubber tie hole. To make this simple, the ammo centring hole is the same as the pouch tie holes on either end. The two smaller holes will be made with the smaller punch which aids in the memory of the leather to be folded in the right way.

MAR_1931

Now that the design is setup, it’s time to select a leather. It has to be a balance of good stiffness, but also supple, not too thick, not too thin and has to be low stretch. I have selected a nice white kangaroo section, which is known for it’s low stretch, high strength properties. Single sides, chrome finish cow hide is also good. Leather finished for upholstery  is also good, you want something in between 1.5-2.5mm in thickness. Here I’ve used a right angle square to give myself two edges to work from.

MAR_1932

Leather has grain and depending on where it came off the animal, will stretch more or less. Belly cuts stretch more while leather from the back will stretch much less. What you want to do is test your leather and pull it slightly to find you which direction you want your pouches to be laid out on. The direction with the less stretch should be the LONG side of the pouch, this will make the pouch last longer and deform less as it is used.

I’ve already tested this leather and started to mark out the first lines, the ticks are spaced 20mm apart. This will form the height of the pouch.

MAR_1933

Taking great care to line up the ticks, lightly draw in the lines so they are accurate and straight.

MAR_1934

Now to measure out 60mm increments, these will divide the leather into rectangles.

MAR_1935

Again, carefully scribe in the lines.

MAR_1936

Now to divide the 20mm into 10mm/10mm. This is how the center hole and the pouch ties holes will be located. Sample process, measure out, carefully trace the line in.

MAR_1937

At this point, it’s going to get messier as more lines are put down. So use a marker to put dots on the  lines you will use to cut. They differ from the registration/location lines.

MAR_1938

Marking the vertical cut lines.

MAR_1939

On the initial drawing, the center of the pouch tie holes are 10mm from the edge, so mark, align and draw in those center lines. The same goes for the center hole, it is 30mm from either end.

MAR_1940

Now comes the hardest part, punching the holes. Using the lines like cross hairs, line up the punch and wack away. This is the center hole.

MAR_1941

The center holes punched on the two.

MAR_1942

Now punch the outside tie holes.

MAR_1943

After punching out the outside tie holes, take the small punch and line it up in the other cross hair that was made. This will form the little divot to aid pouch folding in half.

MAR_1944

For the outside edges, just line up half the punch and wack. This will cut a semi circle out.  MAR_1945 MAR_1946

Repeat until the whole thing is punched out.

MAR_1947

I chose not to put center holes in this line, but I still put the side divots in.

MAR_1948

The hole sheet done now.

MAR_1949

This is an optional step, using the scalpel/Xacto blade, cut into a slot on the inside line of the pouch tie hole. This will make pulling the folded bands or tubes easier.

MAR_1950





As seen on the hole closest to the camera.

MAR_1951

This step is also optional, but makes the pouch that much more clean in the end. Use a drafting circle template to mark a half circle on the outside of the pouch, like the original drawing.

MAR_1953

Repeat until all of the circles are drawn in.

MAR_1954

How, using the knife, carefully cut the pouches in to length wise strips. This allows for a more accurate cut.

MAR_1955

MAR_1956

After slicing them into strips, each pouch can be separated into sections. This can be done with a knife or scissors.

MAR_1957

After all that careful planning, the left over scrap and the semi finished pouches. At this pouches are serviceable, but it’s nice to have them finished on the edges.

MAR_1958

There are two different ways to do this…I am sure there are more but these are the simplest ways. The first way is to cut using sharp scissors, the semi circle that we drew on the pouch.

MAR_1959



The 2nd way is even simpler, just cut off the corners at 45 degrees.

MAR_1960

Comparing the drawing to the real thing.

MAR_1961

So that’s the short and tall of how to make a slingshot pouch. This obviously isn’t the ONLY way to do it, but I encourage you to try out different shapes, lengths, thicknesses etc until you find what works for you. I still prefer the precision of a laser cut pouch, but not everyone can get access to such high tech equipment.

Thanks for reading!

Next up, cutting bands and assembling a band set!

Posted on 1 Comment

Metro Made | The Death Rattle Mallet

In this Metro Made, we set out eyes on yet another tool, the humble leather working mallet. I punch hundred’s of holes each week to slide metal clips into place or buttons snaps. For a long while, I used a simple 10″ long traditional mallet made from nylon.

I wanted something more compact and…of course, custom made for my workflow. I really enjoy using my Copperhead mallet, so much that I wanted a bigger, soft head version for strike leather punches. I call it the Death Rattle…you’ll know why soon enough.

Let’s go!

First, let’s cut the stock for hammer striking head. Some 2.5″ diameter Ultra High Molecular Weight Polyethylene will do the trick, no silly nylon or HDPE, this stuff is the bees knees in terms of weight and durability. A healthy 3.5″ was cut off from the log.

IMG_0020

This stuff was tough, even with my most aggressive wood saw, it took quite a lot of work to make it cut.

IMG_0021

Now time for the real work…the piece was chucked up on the lathe. It JUST fit on the mini lathe. This is the most dangerous step, with the uneven surface of the saw cut face, it could catch the tool and bounce right out of the jaws. I wanted to face the end so as to flip is over to get a better grip on the material.

IMG_0022

After many, many light passes, the first surface is faced and flush.

IMG_0023

Flipping it over, the other side was much safer to face. If my lathe was bigger, this wouldn’t of been such a hassel.

IMG_0024

I managed to buy a bunch of tool handles from Lee Valley tools for a scant price of $.50 each. They came all ready to go with a 5/16 fine thread rod. This is the same handle I used for the Copperhead Mallet, so it may look familiar to you frequent readers. Here I eyeball up how far I need to make the threads.

IMG_0025

UHMWPE may be tough, but it yields to drill bits quite nicely. A fat centerdrill is used to get the hole started.

IMG_0026

Then a 5/16″ was drilled 1″ in. This allowed for the tapered tap to get far enough in to make a nice clean set of threads.

IMG_0027

Test fit and we a basic hammer. I could leave it like that, but where’s the fun in that!?

IMG_0028

Fully seated.

IMG_0029

I then turn a tenon on the so the handle has something visual to sit on. I also face the outside edge, this isn’t needed but it’s nice to have a fresh face to start off with. I don’t show it, but the work was supported by a live center point on the tail stock.

IMG_0030

Then flip is over to finish the facing of the outside surface.

IMG_0031

One fresh surface.

IMG_0032

This was the hardest part of the operation, and this is also why I called this the Death Rattle. The plan is to hollow out the mallet, fill it with steel shot and plug it. I use a 1.25″ Forstner bit to hog out the inner material about 2″ deep.

IMG_0033

Another test fit. I’ll chamfer the end towards the handle for comfort later.

IMG_0034

Time to make the plug. I made a small mistake and used the 1.25″ Forstner bit instead of the 1″, but I found a fix that worked out well. That is a ring of 1″ ID, 1.25″ OD schedule 40 PVC pipe. It’s a near perfect fit and will need to be pressed into place.

IMG_0035

Once I had the spacer, I cut off and machined a bit of 1″ nylon rod to use a s plug.

IMG_0036

The fit was a tiny bit loose, so I wound two wraps of electrical tape onto the nylon lug and hammered/pressed it into place.

IMG_0037

To avoid separation, a 1/32 hole was drilled and counter sunk with a 1/16 bit a small nail was driven into place.

IMG_0038

Chucked the plug with pvc sleeve into the lath again and faced it so it was one unit, then pressed it into the hammer head. The same hole set and nail was driven in to pin it place. The fit was pretty tight to begin with, but this is just for added security.

IMG_0039

I had forgot to mention, the tapped hole was drilled clean through into the now void chamber so that I can pack in the steel shot though it. That way, there was no need to fiddle with the plug and getting the exact amount of shot in it. I can tune it later if needed by removing or adding more steel shot or sand.

IMG_0040

Now to fill it with .177 BBs. A bottle of these are so cheap, they make great ammo AND weights. Slowly but surely, the chamber fills up and there is a tiny rattle sound from the micro voids. Now you get it…it’s called the Death Rattle for a reason.

IMG_0041

Once it was filled up, handle replaced onto it, the feeling wasn’t right. Then I remembered I was going to chamfer the bottom edge. So back on the lathe it went to receive a 30 degree bevel. Now I can choke up on the it if needed. The final weight is just over 10 ounces which makes it a weight to swing and hit a punch without much effort.

IMG_0042



I may revisit the handle and give it a nice end cap detail. I also may add a eye bolt on the end of the handle to hang this up on a peg, but for now, she’s serviceable and ready to smack some tools!

IMG_0043

IMG_0044

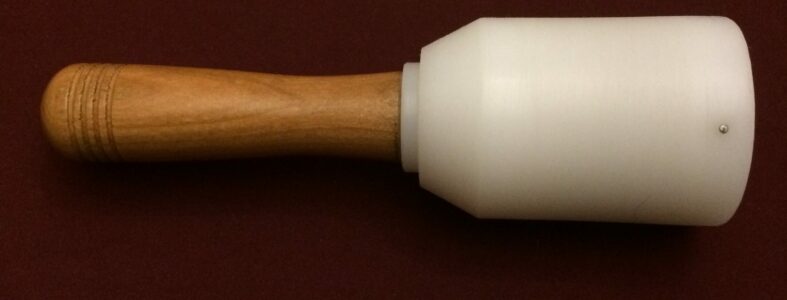

IMG_0045

IMG_0047

IMG_0048

Thanks for reading once again and don’t forget…Christmas isn’t that far away.

-Stay True-

-Eric

Posted on 4 Comments

Metro Made | Spanish Knight aka Don Quixote

Fall is here, which means less time on the range and more time in the shop. This also means more Metro Made posts! In this instalment, we make a slingshot for Gaspar Arcón, one of Spain’s top slingshot target shooters. Not only is he deadly with 8mm steel balls, he’s also a super nice guy and also friendly on Facebook.

We been chatting back and forth for the last little while and we decided to work on a trade. Gaspar lives in the heart of Spain where Olive trees grow naturally, free for the picking. He often goes out and collects forks from these trees, the wood being a very dense, very figured and shapeable material, perfect for slingshots. A couple of months ago, he sent me a box full of goodies including a huge thick fork for carving and several smaller forks for standalone slings.

Here is the Metro Trade report I did on it:

This Metro Made is my end of the bargain, grab a cup of coffee, this is an exact play by play of the whole process, start to finish.

I started off asking how large Gaspar’s hands were. After knowing how far his grip was, it was time to map out where his fingers would lay and incorporate leather tab band attachments commonly found on Spanish style slingshots. On a previous, top secret project, I developed a slot system for the leather tab that would attach with a screw on to the frame. I used that design on this Spanish Knight.

Screen Shot 2014-09-28 at 11.46.29 AM   Sep 28

This DXF file was then sent to the waterjet shop and the frame was cut out of 1/4″ 6061 aluminum, known for it’s good strength to weight ratio but at a relatively inexpensive cost. Once the cores were in the shop, it was time to select the timbers. I wanted this to be a useable slingshot, not too crazy of a jewel that Gaspar wouldn’t be afraid to use it, but something special he would love sharing with his colleagues. I also wanted it to be inherently Canadian. For the business end (the tips) I chose Canadian sugar maple, for a couple of reasons, firstly it’s Canadian, secondly, it laser cuts with very good accuracy.

I also chose a nice red coloured wood, Chakte Kok AKA Redheart. for the handle section of the back side. This wood doesn’t laser cut very well but it’s a section that can be manually cut out. On the front side, I chose a nice section of curly Walnut because it is easy to shape and it’s very warm to the touch.

IMG_9726

To accent the selection of timbers, I went with copper tubes for the pinning. A nice 1/8″ from K&S Engineering and a section of 1/4″ OD utility soft grade tubing (for the lanyard hole)

IMG_9727

For that extra special touch, I sourced some brass 1/4-20 screws where I would normally use steel. I coupled these with some neoprene washers which would prevent over-tightening since they have a single slot for a screw driver/coin.

IMG_9728

After getting all the materials ready to go, it was time to get cracking. First step was to machine the hole for the screws, this is important to do now since the scale would cover this hole up and it’s good to get the messy work done first. A power drill, a 1/4-20 tap and some machine oil made quick work of the threads. The hole was already presized to the correct size so there was no need to drill it out for the tap.

IMG_9729

The brass bolts only came in 3/4″ lengths so they were cut and filed down to size. 1/4-20 is a nice, forgiving thread that is strong but small enough to fit into this frame.

IMG_9730

Using the threaded holes as a locator, some recesses were drilled into the mating side of the maple JUST in case there was over-tightening. The recess would provide some relief so that the mechanical advantage of the screw wouldn’t delaminate the scale from the core.

IMG_9731

Time to adhere the two parts of the back scale into place. The mating surface of the aluinum was keyed with 80 grit sand paper so the epoxy would have something to tack to.

IMG_9732

Using pony spring clamps to hold the timber in place. It’s important not to put too much pressure on it since the epoxy wants to squeeze right out if too much is used.

Maker Tip: Get yourself a notepad, a cheap one but with thick paper. Use this combined with a stash of cheap popsicle sticks to mix up your epoxy. When you are done mixing or even if you leave it to set, you can rip off the top sheet of the pad and throw it away. No need for mixing your epoxy on a scrap wood or whatever. You can even drill or punch a hole in it and hang it up near your epoxy supply.

IMG_9733

Once the epoxy has had an hour or so to cure, a coping saw it is a great way to remove the excess material. The redheart smells funny when cut and sanded so I wore a dust mask every time I worked with wood. No sense developing a dust allergy.

IMG_9735

Now I get to use some of my favourite tools, the Razor File. This particular flavour is a 1/2″ wide, Xfine version. The Razor File actually CUTS the wood instead of abrading it. I work into the core so not to blow out fibres. It’s a good time to note that the laser cut maple was digitally expanded 1mm so the burned edges could be filed away to perfectly meet the aluminum core. The Redheart is filed flush as well.

IMG_9736

I am a big fan of power tools as they make quick of work on things but when dealing with special projects and delicate wood, cutting things by hand prevents big mistakes. I love how the slow file process produced a neat pile of light and red coloured filings. Notice the razor file creates chips and not powder.

IMG_9737

This is the final shape of the silhouette, the excess epoxy will act as a gap filler mixing with the burned edge of the maple to create very crisp black line.

IMG_9738

To clean up the inside slot, a nail file is trimmed down to fit in there and a couple of swipes and it’s done.

IMG_9739

Now that the backside scale is profiled, it’s time to prep for the front side scale. Here a 1/8″ bit and a 1/4″ bit are used to clean up the holes, prepping for the copper tubes.

IMG_9740

..but before that, the walnut scale needs some attention. Since this is going to be epoxied on before shaping, there are two edges near the exposed aluminum that would be inaccessible after it’s tacked down. I use a pencil crayon to mark where I need to sand back the burned edges.

IMG_9741

The frame itself needs to some attention. The exposed aluminum area get a sanding to 600 grit. The smooth transition from wood to aluminum needs to be prefect since there is no other exposed aluminum other than the spine and edges. Having the aluminum smooth there is also important in the gluing process, more on that later.

IMG_9742

The copper tubes dry fit into place. They get chucked into a drill and a coarse sanded to create a tooth for the epoxy to grab onto.

IMG_9743



Again, spring camps hold down the critical mating areas, mainly the tips and butt end. Some additional epoxy was dabbed onto the tubes so any gaps would be filled.

IMG_9746

This is where surface prep proves its worth in time investment. Since the fork tips was sanded flat and smooth, removing any excess epoxy that was squeezed out with a cotton swab was easy and painless. The transition between wood and metal is now seamless with a tiny bead of epoxy filling any gap.

IMG_9744

A short while later, I couldn’t help by test fit the bands. These are traditional 5mm wide gum rubber bands that Gaspar sent to me a couple of week ago. They are medium pull and work great with tabs.

IMG_9749

You can get a first look of how the tab attachment system works now, the tab is threaded through the frame, and held in with the bolt. Then the tab is rolled over the top and gets held down by the tension of the bands. Upon release, the tab rolls over the frame and like any other OTT shooter, but the bands do not touch the frame, making them last much longer than normal.

IMG_9750 IMG_9751

After a short trip on the belt sander, the excess surface epoxy, tubes and wood are all flush.

IMG_9752

The curly walnut is looking fine.

IMG_9753

Returning back to the vice the edges of the walnut where filed back to flush with the frame with a fine, 3/4″ Iwasaki Razor File.

IMG_9754

It’s starting to look like a sling!

IMG_9755

IMG_9756

Time to clean up the aluminum from all the file scratches. A round of 80 grit sand drum with a rotary tool and then a second pass with a 120 grit.

IMG_9757

This removes the major scratches and dings.

IMG_9759

Now the hardest part. This whole time, it was about prepping the surface for the real artistry: shaping the scales. Normally, a 1/4″ round over bit can be used to just give the whole thing a uniform edge and it would be done. Too easy, too quick, too dangerous and not special enough. Remember, this is going to a champion!

I talk about layout and marking tools in this video:

The marking tools come out, a HB pencil, a white pencil crayon and a compass.

IMG_9760

On the walnut, I map out where I want the scale to taper towards the tips so that the thumb can naturally rest and push up against the button head screw. Gaspar holds in his left hand, but to keep things symmetrical, I laid out the taper on both sides. I also mark out the radius on the rest of the handle and the two areas where I want to chamfer and not round (the fork yoke and the butt end)

IMG_9761

The back side is even more complicated, I wanted transitions between the radius of the handle and the crisp edge of the slots. The yoke area will have the same chamfer as the walnut side.

IMG_9763

Time to get filing. To establish the transition, the Xfine 1/2″ razor file gets plunged into the edge to create the crisp line that follows the frame curve.

IMG_9764

Then it was a matter of following the lay out lines and rounding the edge until it met the metal. Taking great care not to cut into the metal surface.

IMG_9765

Using a super fine half round file, the roughed out edge is cleaned up to a reasonable smoothness. The goal here is to blend in areas that need blending and leave the crisp edge on the places that need to be left alone. This is where power tools fail and hand finishing and slow methodical cutting wins.

IMG_9766

The same technique was applied on the yoke area, establish the crisp transition and then cut away to the guideline. This was a lot easier since a chamfer is much more forgiving than a hand cut radius.

IMG_9767

Lather, rinse, repeat on the other side.

IMG_9768

The last chamfer is the butt end, I imagined this to be the tip of a broad sword so the two chamfer meet in the middle the two edges of a sword. There is a slight curve but careful filing completes the compound curve.

IMG_9769

The back side isn’t quite finished. Since the middle and index fingers get wrapped around the waist area, the scale was filed down with a half round file (so the copper pin could be also filed down simultaneously). The subtle 3mm dip into the surface of the slingshot makes registering the grip a lot easier and intuitive.

IMG_9771

Now it was time to pay attention to the walnut/front scale. Blue painters tape is used to cover the aluminum tips to minimize damage if an accidental slip of the file happens. Those who make knives, know this technique all to well to save the highly buffed and prepped surface of a blade.

IMG_9772

This was one of the toughest shaping processes since it’s not just a slope, but a compound curve sloping towards the tips and outside of the forks. The goal here was to have a nice place for the thumb to brace since a thumb normally rotates outwards.

IMG_9773

Once those two complex slopes were done (super tough to get symmetrical!) The same process of establishing the transition between curve and edge and then continuing to round the edge was done. In the photo is one of my favourite files, a super fine 6″ half round USA made Nicholson.

IMG_9775

The file leaves the surface pretty smooth, but some 100 and 240 grit sanding sticks help smooth the transitions and surface out.

IMG_9776

IMG_9777

A some buffing with a 320 grit sponge to really smooth out the wood.

IMG_9778

You can see how the tips of the walnut scale roll out and towards the tip.

IMG_9779

Lastly, some synthetic steel wool takes out any remaining weirdness in the surface.

IMG_9781

A rubbing alcohol swab removes any grease and dirt (and the redheart tends to deposit on the lighter coloured wood). The compound is quick evaporating so it doesn’t raise any grain, but any grain can be knocked down again with the steel wool.

IMG_9780

Finishing!

The whole slingshot gets a 15 min bath in boiled linseed oil and then massage for a couple of minutes. The sling is then left with a thick layer of it for about 30 mins while the the oil has a chance to penetrate the surface.

IMG_9782

After the 30 mins, excess is wipe away and again left for another 30 mins.

IMG_9783

Meanwhile….the brass screws get chucked into a drill and then while spinning, get pushed into a spinning cloth wheel. The dual spinning action creates a mirror surface in no time. Overkill? Sure. Why not.

IMG_9785

You can almost make out my camera!

IMG_9786

Shiny!

IMG_9787

Time for some Tried & True beeswax/linseed oil mix.

IMG_9788

Laying it on thick and then leaving it for 15 mins, wiping away the excess then buffing it dry with a cotton rag. The result is a nice natural finish low shine and smooth texture.

IMG_9789

The Maple coupled with the Redheart is just divine, since they are similar in hardness, the texture on both is similar.

IMG_9790

One of the best thing about beeswax is that there is no cure time, so onwards to fitting the bands on!

IMG_9791

Huge satisfaction in seeing this together.

IMG_9792

IMG_9793

Once it was together, it was time to get some archivable photos.

MAR_1818



MAR_1819



MAR_1820

MAR_1822

MAR_1823

MAR_1824

MAR_1825

MAR_1826

MAR_1827

MAR_1828

MAR_1829

MAR_1832

MAR_1833

MAR_1834

MAR_1835



Thanks for reading, if you’ve stayed up to this point..it’s time to get up and stretch, I know you’ve sat for at least a fortnight.

Get out and make something.

-Eric

Posted on Leave a comment

Metro Retro Made | Stanley No. 64 Spokeshave

Our last Metro Retro Made featured the restoration of a unique, stubby handled brush. In the same purchase, I also found a nice looking spokeshave. Spoke shaves work a lot like hand planes, but instead of pushing the blade forward, the blade is drawn towards you. This allows for very light, precise curls on cylindrical or organic shaped stock.

This spokeshave looked like it had been used for a period of time but was stored in some pretty rusty bins for a while. I almost thought it was made from steel there was so much rusty dust on it. The old epoxy paint was hiding some stamping and frankly, I knew nothing about it.

IMG_8934

First things first, time to dissect the patient. The part count for this guy is low, which is good, less things to fail. You can see the old epoxy paint is quite thick and chipped in areas. The blade is also pitted and rusted. The only thing in good shape is the thumb screw.

IMG_8991

Sticking the chassis and the blade cover into the blasting cabinet, I hit the whole thing with glass media to clear the surface of rust and the old epoxy paint. The body was actually in super good shape, no dings or massive gouges.

IMG_8992

It was at this point I found out this is actually a Canadian made No. 64 Stanley. A little research told me that this is identical to the ones made in the USA and the UK, there must of been three moulds made and three factories. There was a little flashing on the handles from the casting. When I first picked this guy up, I thought it was steel because all of the rust, in reality this is likely a magnesium aluminum alloy, a very common casting material in the 1920-60’s. A couple of draws with a fine file smooths out the flashing.

IMG_8993

After shooting two coats of self etching primer, the surface was prepped for some black, gloss appliance epoxy paint. The epoxy paint will be super durable and it’s period correct.

IMG_9107

The blade plate was originally black, but I wanted to mimic the Stanley 12-951 model with it’s red plate.





IMG_9109

After waiting a full 24 hours, the epoxy paints have fully cured and it was time to pay attention to the business end of the spoke shave.

IMG_9121

The cutting surface of this particular model is completely flat so to sand off the epoxy paint and keep things true, I turned to my scrap piece marble found at my local counter top manufacturer. I use 120 grit first to do the heavy removal.

IMG_9122

This is beginning to look like a final product.

IMG_9123

Then I used some wet dry 240, 600 and 1000 to give the surface a nice glossy surface.

IMG_9124

I didn’t show it, but I did the same process for the blade. After taking off the rust, the ‘Made in Can’ made an appearance. The blade didn’t have any nicks in it and the angle was already set to 30 degrees. All I had to do was slowly hone the surface with 600 grit wet paper, then 1000, then 2000 grit. A final buffing with some diamond compound on a soft wheel to give the edge a mirror finish.

IMG_9125

Replacing the red plate on the spokeshave and tighten down the thumb screw.

IMG_9126

Some test curls on some pine.

IMG_9127

All the work carefully honing the blade has proven to be worth while.

IMG_9128

It even works for BIG curls along larger surfaces.

IMG_9137

A close up of the mirror edge, chisel blade.

IMG_9132

Proudly made in Canada, and now REMADE in Canada as well.

IMG_9133

The model number, No. 64.

IMG_9134

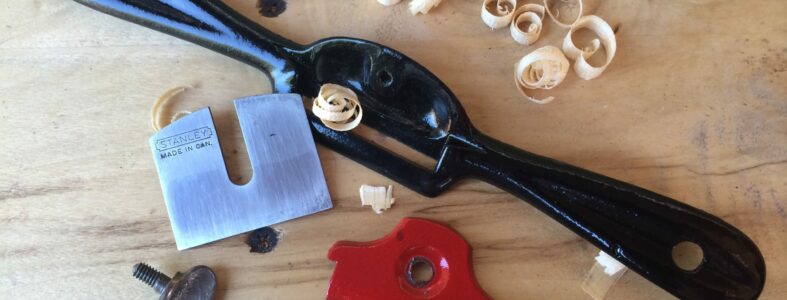

Again, the part count being very low, there is very little to break. More complicated models feature precision depth guides, multiple thumb screws etc. I enjoy the simplicity of this model.

IMG_9135

And one parting shot…

IMG_9136

Here’s a quick video of it in action, using the spokeshaving with my shaving horse I built from 2×6’s and 2×4’s.

Thanks for reading!

Expect more Metro Retro Mades, these are way too much fun to do and the best part is the result something I can use.

-Eric

Posted on Leave a comment

Metro Made | Copperhead Carving Mallet

I have been getting back into tooling mode lately, collecting and acquiring hand tools and finding ways to make them uniquely mine. In this Metro Made, I craft a carving chisel based on a classic brass headed carving mallet.

Lets being by looking at the inspiration…the wood handle. I went to my local Lee Valley tools to pick up a set of Milled-Tool files and I looked over at the discount table. Low and behold, there were boxes upon boxes of discontinued handles. For literally $.25, I could get a full finished, cherry wood handle with a nice 5/16 threaded row already installed into it. I had no idea what I was going to use them for, but I bought them all.

After doing some research into a nice design for my own metal head carving mallet, I came across an archived image from Veritas tools, Lee Valley’s house brand. The same handle appeared, I knew I was on to something.

15K0501s1

Some more research later, I find what I feel would be a good design, I love how the neck of the brass flows into the handle with no transition or break line. I didn’t know if I could get that tight of a fit, but I would try my best. The image is also from Lee Valley’s archives. This is currently sold as the “Journeyman’s Carving Mallet”.

blow_73C67541-5056-9C00-64EFCA02F86EEC24

I didn’t have any 1.5″ brass stock, but I did have some 1.5″ Tellurium Copper. Tellurium Copper is awesome, unlike the 99.9% pure copper, the added alloy of Tellurium makes it machinable and very hard. This is a hunk of it for scale.

IMG_8445

I cut off 2″ from this 12″ rod and chucked it up on the lathe.

IMG_8446

I mixed up the order of operations, in hind sight I should of machined the ‘face’ of the mallet first entirely and then chuck it up again on the otherside. Instead, I faced on side and tapped 5/16 thread into it. The handle already had an attached 5/16 bolt which made this project so much easier to deal with.

IMG_8447

I tapered the head at 30 degrees and took off the cooper until it almost met with the wood. From there, I used a half round file to manually blend the wood and copper till they made the a similar seamless transition. Before I finished the whole handle, I added some end cap detail by laminating some walnut and paduak spaced with maple veneers. Purely decorative, but sure makes it nice and custom.

The handle was then spun and using 80, 120, 240, 400, 600 and some steel tool, I prepped the surface to accept 4 coats of super glue. Having it already on the lathe made applying the super glue finish easy as I spun the handle very slowly. I hit the surface again with the steel wool to even out the glue.

I pulled a painters trick and used some bunched up news paper and turning the handle at it’s fastest speed to buff it to a very even shine. It feels like a pool cue.

IMG_8448

IMG_8449

IMG_8450

The end result is a copperhead carving mallet with a weight of just over 1Lb or 465 grams. Plenty of heft, but thanks to the small handle, incredibly controllable.  IMG_8452

IMG_8453

IMG_8454

I love the end product so much that I want to make a smaller one, maybe 1/2 or 1/3 pound to compliment each other.

Thanks for reading!

-Eric

Posted on Leave a comment

Metro Retro Made | The Stubby Shop Brush

I love old tools. In partuclar, old tools that have LOTS of life left in them. When trolling around my favourite flea market, I came across some pretty beat up gems that were begging to be made useful again. The best part about restoring tools is that not only are they a fun project, in the end, they are useful items.

The shop brush is one of those under appreciated shop tools, but who says you can’t have nice things. I found this busted old 2″ thick round brush in the pile of junk, surprisingly, the bristles were still in good shape. The handle has seen a lot of sun, chemical exposure and a lot of shop floor drops. I adopted it like a runaway puppy. I had also found a vintage Canadian made Stanley spoke shave, that’s for another build post.

IMG_8934

The first thing to do was to remove the ferrule nails, this was pretty easy as they were only about .5″ long. The process was a little flowy so I didn’t take too many build pics. However, the process was pretty easy, take the handle and chuck it up in the lathe and spin it pretty fast. Using 80 grit paper to get rid of the paint, and then progressively finer and finer papers till it was time for some 000 steel wool.

IMG_8935

Since the ferrule was off, I buffed it with some 240 grit paper and the surface rust disappeared. I reassembled it after revealing the handle’s natural wood surface. In this case, it is a nice maple. I like how the red chemicals that this brush was used to paint with actually etched the colour into the wood near the ferrule.

IMG_8936

The handle’s butt end was actually badly dented and chipped so…..

IMG_8937

It got loped of in favour of some super sweet hardwood cut offs. A stack of paduak and walnut spaced with maple veneers were glued onto the bottom.

IMG_8939

When that was dry, the new 80 grit belt sander made quick work of the blocky shape, bringing back the dome shaped end cap.

IMG_8940

Again, using progressively finer and finer grits of sand papers, the new end cap was blended into the existing handle. Once it was smoothed out, a short bath of boiled linseed oil brought out the grain.

IMG_8941

After the BLO dried up, some more steel wool buffing till it was baby butt smooth.

IMG_8943

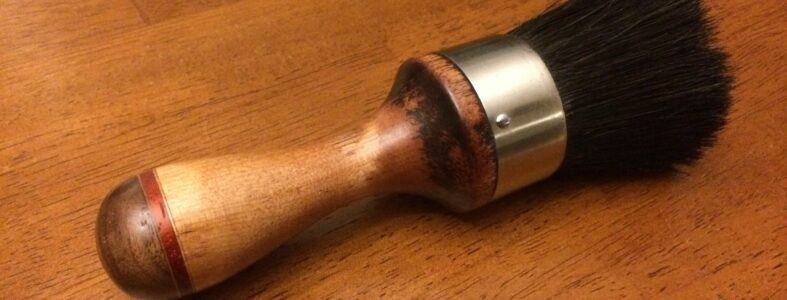

After three coats of super glue, it was time to put this brush into service. The best part about this stubby brush is that it stands up on end.

IMG_9034

IMG_9035 (1)

IMG_9036

Expect more Metro Retro Mades soon, I love restoring old tools into something I can use.

-Eric

Posted on Leave a comment

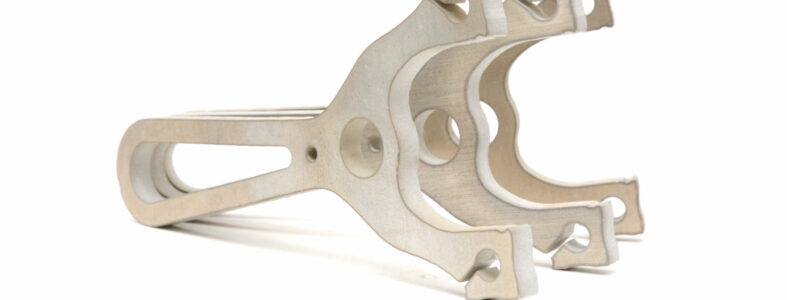

Metro Made | Oak Metbro Unishot and Classic

Since the launch of the new Metbro line, they have garnered a small following of slingers wanting to try out the old school feel but with some modern aesthetics. This Metro Made is about finishing a pair of Metbros, a Classic and a Unishot with some old growth oak, brass pins and a leather insert for the thumb pad.

Want to make one? Check out our Maker category.

Metro Grade Goods Maker Category



Posted on Leave a comment

Metro Made | The Bolt Cutter

Happy Father’s Day! In this Metro Made instalment I make a little BB shooter from the nuts and bolts isle at your local hardware store. A recent post over at the Slingshot Forum sparked the inspiration for this quick project. Literally taking all of 15 minutes, this little BB shooter is actually quite accurate once you dial in your sights. The Bolt Cutter is a hard as nails with looks only a Father can love.

First, I gathered the parts. A 2.5″ long 3/8″ bolt, a 2″ long 3/8″ coupler nut, a 3/8″ acorn nut, a 3/8″ wingnut and some 3/8″ spring washers (I didn’t end up using them but I wanted to have them just in case)

IMG_8325





First, since the threads on the bolt don’t go all way to the head, the female threads of the coupler nut need to be drilled out so that the shaft of the bolt can ride free. The left over 3/8″ thread will be plenty to hold the nut on.

IMG_8326



Second, mark the 3/8″ drill bit. Since this isn’t stainless steel, a nice sharp TiNi HSS 3/8″ drill bit will do. I used some oil to smooth out the cutting.

IMG_8327

I chucked up the coupler nut into the 3 jaw chuck and mounted the 3/8″ drill bit into the holder. I drilled all the way to the mark.



IMG_8329

Now it’s time to pay attention to the wingnut. Again, faced with the issue of the bolt not having threads, the threads of the wingnut need to be drilled out. To do this I clamped up the wingnut in my mill using some parallels as a spacer.

IMG_8330

I then removed the parallels to leave the wingnut sitting proud of the vice jaws. This leaves room for the 3/8″ drill bit to cleaning pass through all the threads with out drilling into the vice.

IMG_8331

See what I mean…

IMG_8332

Pre assembly state. In the end, the pressure of the coupler nut is all the wingnut needs to have to be set in place. At this point you will notice the head of the bolt interferes with the forks.

IMG_8333

Milling off the bolt head so it sits more flush in between the forks. It’s basically a button.

IMG_8334

Sliding the wingnut onto the shaft to see how it fits. Lots of clearance for a OTT set of BB bands.

IMG_8335

I tested out the spring washer. While it works, it was unnecessary so I removed it and torqued down the coupler nut onto the bolt sandwiching the head and the wingnut. It is also useful to round the tips of the forks so increase band life.

IMG_8336

Adding the acorn nut on the base. This caps off the bolt making a nice clean look. As clean as hardware stamped out at 300 per minute can look.

IMG_8337

Time to make up a set of BB bands. Cutting a 1/4″ wide elastic and then attaching it to a mini kangaroo leather pouch.

IMG_8338

Then use some Theraband Blue to attach it to the forks. I used TB Blue because it is extra thin so I can get more wraps without bulking up the tips too much.





IMG_8339

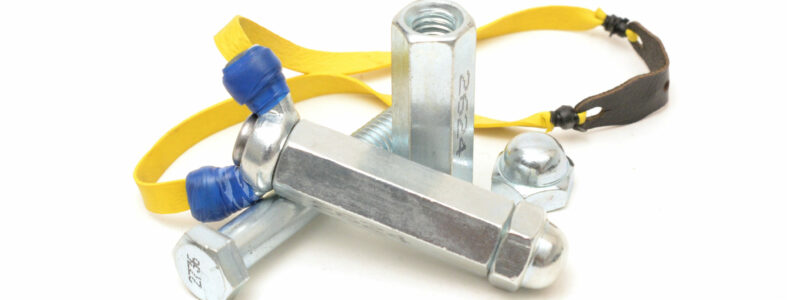

So that’s it. While there were some advanced tools used in the making of the Bolt Cutter, you can easily do it with a drill press or even a hand drill with some patience. Here are some photos of the final result, I have a few more sets of hardware so I may make another and pimp it out with some knurling, jimping and a polish.

MAR_1674





MAR_1675





MAR_1676





Don’t forget to subscribe to our Youtube Channel: Metro Made

Posted on Leave a comment

Double Nomination for June SSOTM

Every month, the Slingshot Forum community nominates slingshots made in the previous month to be pitted in a friendly, juried competition.

I am happy to report that not just one but TWO Metro Grade slingshots are in line to gain the coveted recipient of the title Slingshot Of The Month (SSOTM)

Our Metro Grade Black Hornet (based on our new Wasply Maker Kit) and the mega layered Turkey Shukapow!.

IMG_8150

IMG_8151

IMG_8152

IMG_8153

MAR_1589

MAR_1591



Turkey Shuckapow!

ROS_8482

ROS_8483

ROS_8484

ROS_8485

ROS_8486
